To start this process smoothly:
- Send us a drawing: It can be hand-drawn or in CAD format, whichever you prefer.
- Provide us with information about your project: material grade, quantity, length, surface finish, specific testing requirements, required dimensional tolerances, and any other relevant details.
- Unit B, 9/F, Worldwide Centre, 123 Tung Chau Street, Tai Kok Tsui Kowloon.HongKong
- T: +852-92992995
- E: sales@peakkong.com
+
- Standard: EN 10365:2017
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: ASTM A1069, EN 13919
- Steel grade: S275J0, S355J0, S460J0, S460M, S460ML, S690QL
- Tolerance: BS 4-1:2005, DIN 1026-2
- Certificate: According to EN10204-2.2 or 3.1B

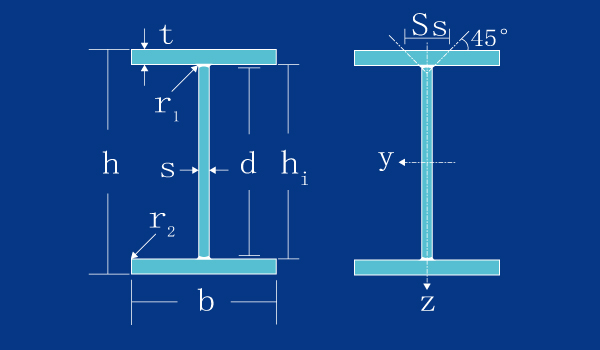

| Description | Execution | kg/m | h /mm | b /mm | s /mm | t /mm | r /mm |
|---|---|---|---|---|---|---|---|
| HEB 100 | Laser | 20.4 | 100.0 | 100.0 | 6.0 | 10.0 | 12.0 |
| HEB 120 | Laser | 26.7 | 120.0 | 120.0 | 6.5 | 11.0 | 12.0 |
| HEB 140 | Laser | 33.7 | 140.0 | 140.0 | 7.0 | 12.0 | 12.0 |
| HEB 160 | Laser | 42.6 | 160.0 | 160.0 | 8.0 | 13.0 | 15.0 |
| HEB 180 | Laser | 51.2 | 180.0 | 180.0 | 8.5 | 14.0 | 15.0 |
| HEB 200 | Laser | 61.3 | 200.0 | 200.0 | 9.0 | 15.0 | 18.0 |
| HEB 220 | Laser | 71.5 | 220.0 | 220.0 | 9.5 | 16.0 | 18.0 |
| HEB 240 | Laser | 83.2 | 240.0 | 240.0 | 10.0 | 17.0 | 21.0 |
| HEB 260 | Laser | 92.9 | 260.0 | 260.0 | 10.0 | 17.5 | 24.0 |
| HEB 280 | Laser | 103.1 | 280.0 | 280.0 | 10.5 | 18.0 | 24.0 |
| HEB 300 | Laser | 117.0 | 300.0 | 300.0 | 11.0 | 19.0 | 27.0 |
| HEB 320 | Laser | 126.6 | 320.0 | 300.0 | 11.5 | 20.5 | 27.0 |
| HEB 340 | Laser | 134.2 | 340.0 | 300.0 | 12.0 | 21.5 | 27.0 |
| HEB 360 | Laser | 141.8 | 360.0 | 300.0 | 12.5 | 22.5 | 27.0 |
| HEB 400 | Laser | 155.3 | 400.0 | 300.0 | 13.5 | 24.0 | 27.0 |
| HEB 450 | Laser | 171.1 | 450.0 | 300.0 | 14.0 | 26.0 | 27.0 |
| HEB 500 | Laser | 187.3 | 500.0 | 300.0 | 14.5 | 28.0 | 27.0 |
| HEB 550 | Laser | 199.5 | 550.0 | 300.0 | 15.0 | 29.0 | 27.0 |
| HEB 600 | Laser | 211.9 | 600.0 | 300.0 | 15.5 | 30.0 | 27.0 |
| HEB 650 | Laser | 224.7 | 650.0 | 300.0 | 16.0 | 31.0 | 27.0 |
| HEB 700 | Laser | 240.5 | 700.0 | 300.0 | 17.0 | 32.0 | 27.0 |
| HEB 800 | Laser | 262.3 | 800.0 | 300.0 | 17.5 | 33.0 | 30.0 |
| HEB 900 | Laser | 291.5 | 900.0 | 300.0 | 18.5 | 35.0 | 30.0 |
| HEB 1000 | Laser | 314.0 | 1000.0 | 300.0 | 19.0 | 36.0 | 30.0 |
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.Wide flange beams HEB The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.

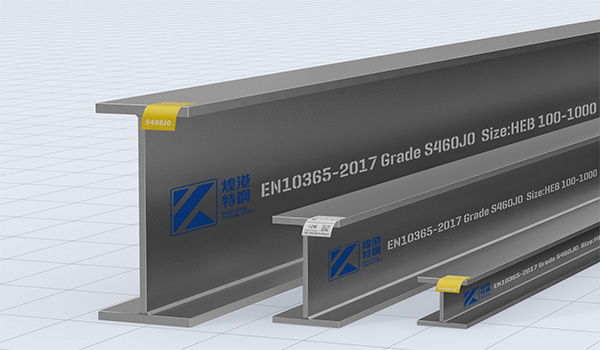

Wide flange beams HEB Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
