To start this process smoothly:
- Send us a drawing: It can be hand-drawn or in CAD format, whichever you prefer.
- Provide us with information about your project: material grade, quantity, length, surface finish, specific testing requirements, required dimensional tolerances, and any other relevant details.
- Unit B, 9/F, Worldwide Centre, 123 Tung Chau Street, Tai Kok Tsui Kowloon.HongKong
- T: +852-92992995
- E: sales@peakkong.com
+
- Standard: EN 10365:2017
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: ASTM A1069, EN 13919
- Steel grade: S275J0, S355J0, S460J0, S460M, S460ML, S690QL
- Tolerance: BS 4-1:2005, DIN 1026-2
- Certificate: According to EN10204-2.2 or 3.1B

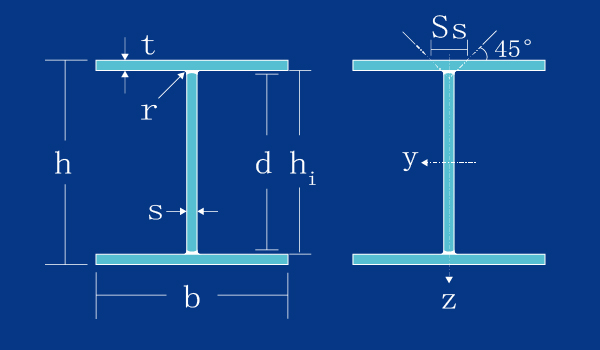

| Description | Execution | kg/m | h /mm | b /mm | s /mm | t /mm | r /mm |
|---|---|---|---|---|---|---|---|
| HEA 100 | Laser | 16.7 | 96.0 | 100.0 | 5.0 | 8.0 | 12.0 |
| HEA 120 | Laser | 19.9 | 114.0 | 120.0 | 5.0 | 8.0 | 12.0 |
| HEA 140 | Laser | 24.7 | 133.0 | 140.0 | 5.5 | 8.5 | 12.0 |
| HEA 160 | Laser | 30.4 | 152.0 | 160.0 | 6.0 | 9.0 | 15.0 |
| HEA 180 | Laser | 35.5 | 171.0 | 180.0 | 6.0 | 9.5 | 15.0 |
| HEA 200 | Laser | 42.3 | 190.0 | 200.0 | 6.5 | 10.0 | 18.0 |
| HEA 220 | Laser | 50.5 | 210.0 | 220.0 | 7.0 | 11.0 | 18.0 |
| HEA 240 | Laser | 60.3 | 230.0 | 240.0 | 7.5 | 12.0 | 21.0 |
| HEA 260 | Laser | 68.2 | 250.0 | 260.0 | 7.5 | 12.5 | 24.0 |
| HEA 280 | Laser | 76.3 | 270.0 | 280.0 | 8.0 | 13.0 | 24.0 |
| HEA 300 | Laser | 88.3 | 290.0 | 300.0 | 8.5 | 14.0 | 27.0 |
| HEA 320 | Laser | 97.7 | 310.0 | 300.0 | 9.0 | 15.5 | 27.0 |
| HEA 340 | Laser | 104.8 | 330.0 | 300.0 | 9.5 | 16.5 | 27.0 |
| HEA 360 | Laser | 112.1 | 350.0 | 300.0 | 10.0 | 17.5 | 27.0 |
| HEA 400 | Laser | 124.8 | 390.0 | 300.0 | 11.0 | 19.0 | 27.0 |
| HEA 450 | Laser | 139.7 | 440.0 | 300.0 | 11.5 | 21.0 | 27.0 |
| HEA 500 | Laser | 155.0 | 490.0 | 300.0 | 12.0 | 23.0 | 27.0 |
| HEA 550 | Laser | 166.3 | 540.0 | 300.0 | 12.5 | 24.0 | 27.0 |
| HEA 600 | Laser | 177.8 | 590.0 | 300.0 | 13.0 | 25.0 | 27.0 |
| HEA 650 | Laser | 189.7 | 640.0 | 300.0 | 13.5 | 26.0 | 27.0 |
| HEA 700 | Laser | 204.5 | 690.0 | 300.0 | 14.5 | 27.0 | 27.0 |
| HEA 800 | Laser | 224.4 | 790.0 | 300.0 | 15.0 | 28.0 | 30.0 |
| HEA 900 | Laser | 251.6 | 890.0 | 300.0 | 16.0 | 30.0 | 30.0 |
| HEA 1000 | Laser | 272.2 | 990.0 | 300.0 | 16.5 | 31.0 | 30.0 |
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.Wide flange beams HEA The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
Wide flange beams HEA Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
Unit B, 9/F, Worldwide Centre, 123 Tung Chau Street, Tai Kok Tsui Kowloon.HongKong.
T: +852-29811161
E: sales@peakkong.com
No. 1 Building 1, No. 6 Xiegang Jinhai Road, Xiegang Town, Dongguan City, Guangdong Province.
T: 0769-82869307
E: admin@peakkong.com
