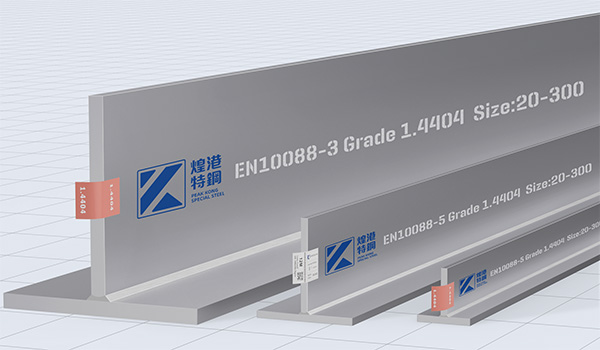

British Stainless Steel Tees

Standard: BS970:1, EN 10088-3
Technology: ISO 15614-11 or ISO 15614-14
Fabrication Craftsmanship: ASTM A1069, EN 13919
Steel grade: 316s11, 316s31, 316s33, 317s16, 1.4301, 1.4307, 1.4401, 1.4404, 1.4436
Tolerance: EN 10056-2:1993
Certificate: According to EN10204-2.2 or 3.1B

PeakKong Special Steel provides compliance with BS970:1 EN10088-3/ASTM A276-2002 to specify T profile, 1.4301,1.4401, 1.4404,1.4462,2507, 304L, 316, 316L, 316S11, 316S31, 317S16, etc.Stainless Steel Tees,and having access to the highest standard Laser Welding fabrication technology allows us to produce custom sections in the shape and alloy you demand to meet your exact needs.

Stainless steel T-sections are used in a wide range of applications, including commercial and industrial ，curtain walls and facade structures and fencing. The use of stainless steel T-sections is characterized by high flexibility in composition and fast and cost-effective construction.

If your project requires something non-standard and your ideal size is not in the list of ‘standard’ sizes readily available then please ask our experienced sales team who can offer the right solution to help satisfy you exact requirement. For more information, please contact our sales team.

Test certificate available - please specify when ordering.

British Stainless Steel TeesPDF

Search:

Description	Execution	kg/m	d = b /mm	t /mm	r /mm
T 30x30x3	Laser	1.38	30	3	2
T 30x30x4	Laser	1.81	30	4	2
T 30x30x5	Laser	2.21	30	5	2
T 35x35x3	Laser	1.62	35	3	2
T 35x35x4	Laser	2.13	35	4	2
T 35x35x5	Laser	2.61	35	5	2
T 40x40x3	Laser	1.86	40	3	2
T 40x40x4	Laser	2.45	40	4	2
T 40x40x5	Laser	3.01	40	5	2
T 40x40x6	Laser	3.57	40	6	2
T 45x45x3	Laser	2.1	45	3	2
T 45x45x4	Laser	2.77	45	4	2
T 45x45x5	Laser	3.41	45	5	2
T 45x45x6	Laser	4.05	45	6	2
T 50x50x3	Laser	2.34	50	3	2
T 50x50x4	Laser	3.09	50	4	2
T 50x50x5	Laser	3.81	50	5	2
T 50x50x6	Laser	4.53	50	6	2
T 50x50x7	Laser	5.22	50	7	2
T 50x50x8	Laser	5.9	50	8	2
T 60x60x5	Laser	4.61	60	5	2
T 60x60x6	Laser	5.49	60	6	2
T 60x60x7	Laser	6.34	60	7	2
T 60x60x8	Laser	7.18	60	8	2
T 60x60x10	Laser	8.81	60	10	2
T 65x65x5	Laser	5.01	65	5	2
T 65x65x6	Laser	5.97	65	6	2
T 65x65x7	Laser	6.9	65	7	2
T 65x65x8	Laser	7.82	65	8	2
T 65x65x9	Laser	8.73	65	9	2
T 65x65x10	Laser	9.61	65	10	2
T 70x70x5	Laser	5.41	70	5	2
T 70x70x6	Laser	6.45	70	6	2
T 70x70x7	Laser	7.46	70	7	2
T 70x70x8	Laser	8.46	70	8	2
T 70x70x9	Laser	9.45	70	9	2
T 70x70x10	Laser	10.41	70	10	2
T 75x75x5	Laser	5.81	75	5	2
T 75x75x6	Laser	6.93	75	6	2
T 75x75x7	Laser	8.02	75	7	2
T 75x75x8	Laser	9.1	75	8	2
T 75x75x9	Laser	10.17	75	9	2
T 75x75x10	Laser	11.21	75	10	2
T 80x80x5	Laser	6.21	80	5	2
T 80x80x6	Laser	7.41	80	6	2
T 80x80x7	Laser	8.58	80	7	2
T 80x80x8	Laser	9.74	80	8	2
T 80x80x9	Laser	10.89	80	9	2
T 80x80x10	Laser	12.01	80	10	2
T 90x90x6	Laser	8.37	90	6	2
T 90x90x7	Laser	9.7	90	7	2
T 90x90x8	Laser	11.02	90	8	2
T 90x90x9	Laser	12.33	90	9	2
T 90x90x10	Laser	13.61	90	10	2
T 100x100x6	Laser	9.33	100	6	2
T 100x100x7	Laser	10.82	100	7	2
T 100x100x8	Laser	12.3	100	8	2
T 100x100x9	Laser	13.77	100	9	2
T 100x100x10	Laser	15.21	100	10	2
T 100x100x12	Laser	18.06	100	12	2
T 110x110x6	Laser	10.29	110	6	2
T 110x110x7	Laser	11.94	110	7	2
T 110x110x8	Laser	13.58	110	8	2
T 110x110x9	Laser	15.21	110	9	2
T 110x110x10	Laser	16.81	110	10	2
T 110x110x11	Laser	18.41	110	11	2
T 110x110x12	Laser	19.98	110	12	2
T 120x120x7	Laser	13.06	120	7	2
T 120x120x8	Laser	14.86	120	8	2
T 120x120x9	Laser	16.65	120	9	2
T 120x120x10	Laser	18.41	120	10	2
T 120x120x11	Laser	20.17	120	11	2
T 120x120x12	Laser	21.9	120	12	2
T 120x120x13	Laser	23.62	120	13	2
T 120x120x15	Laser	27.01	120	15	2
T 130x130x8	Laser	16.14	130	8	2
T 130x130x9	Laser	18.09	130	9	2
T 130x130x10	Laser	20.01	130	10	2
T 130x130x11	Laser	21.93	130	11	2
T 130x130x12	Laser	23.82	130	12	2
T 130x130x13	Laser	25.7	130	13	2
T 130x130x15	Laser	29.41	130	15	2
T 140x140x8	Laser	17.42	140	8	2
T 140x140x9	Laser	19.53	140	9	2
T 140x140x10	Laser	21.61	140	10	2
T 140x140x11	Laser	23.69	140	11	2
T 140x140x12	Laser	25.74	140	12	2
T 140x140x13	Laser	27.78	140	13	2
T 140x140x15	Laser	31.81	140	15	2
T 150x150x8	Laser	18.7	150	8	2
T 150x150x9	Laser	20.97	150	9	2
T 150x150x10	Laser	23.21	150	10	2
T 150x150x12	Laser	27.66	150	12	2
T 150x150x13	Laser	29.86	150	13	2
T 150x150x15	Laser	34.21	150	15	2
T 150x150x20	Laser	44.81	150	20	2
T 160x160x10	Laser	24.81	160	10	2
T 160x160x12	Laser	29.58	160	12	2
T 160x160x13	Laser	31.94	160	13	2
T 160x160x15	Laser	36.61	160	15	2
T 160x160x20	Laser	48.01	160	20	2
T 180x180x10	Laser	28.01	180	10	2
T 180x180x12	Laser	33.42	180	12	2
T 180x180x13	Laser	36.1	180	13	2
T 180x180x15	Laser	41.41	180	15	2
T 180x180x20	Laser	54.41	180	20	2
T 200x200x10	Laser	31.21	200	10	2
T 200x200x12	Laser	37.26	200	12	2
T 200x200x13	Laser	40.26	200	13	2
T 200x200x15	Laser	46.21	200	15	2
T 200x200x20	Laser	60.81	200	20	2
T 250x250x10	Laser	39.21	250	10	2
T 250x250x12	Laser	46.86	250	12	2
T 250x250x13	Laser	50.66	250	13	2
T 250x250x15	Laser	58.21	250	15	2
T 250x250x20	Laser	76.81	250	20	2
T 300x300x10	Laser	47.21	300	10	2
T 300x300x12	Laser	56.46	300	12	2
T 300x300x13	Laser	61.06	300	13	2
T 300x300x15	Laser	70.21	300	15	2
T 300x300x20	Laser	92.81	300	20	2

Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.British Stainless Steel Tees The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
British Stainless Steel Tees Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
