Stainless steel flat tube

Standard: EN 10088-3
Technology: ISO 15614-11 or ISO 15614-14
Fabrication Craftsmanship: ASTM A1069, EN 13919
Steel grade: 304, 316, 316L, 317L, 310S, 904L
Tolerance: EN10088-3
Certificate: According to EN 10204 - Type 2.2 or 3.1b

The following grades: 304, 316, 316L, 317L, 310S, 904L, they are defined by EN 10088-3. Other material grades are available upon request, please view the complete steel grade list.

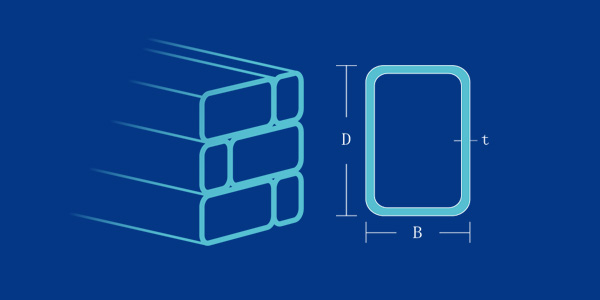

Size d×b /mm	Thickness t /mm	Weight kg /m
20 × 10	1.0	0.45
20 × 10	1.2	0.54
20 × 10	1.5	0.66
20 × 15	1.5	0.78
20 × 15	2.0	1.02
25 × 10	1.0	0.53
25 × 10	1.5	0.78
25 × 15	1.0	0.61
25 × 15	1.2	0.73
25 × 15	1.5	0.90
25 × 15	2.0	1.18
30 × 10	1.0	0.61
30 × 10	1.2	0.73
30 × 10	1.5	0.90
30 × 15	1.0	0.68
30 × 15	1.2	0.81
30 × 15	1.5	1.00
30 × 15	2.0	1.30
30 × 20	1.0	0.77
30 × 20	1.2	0.92
30 × 20	1.5	1.14
30 × 20	2.0	1.50
35 × 20	1.0	0.85
35 × 20	1.5	1.26
35 × 20	2.0	1.65
40 × 10	1.5	1.14
40 × 15	1.0	0.85
40 × 15	1.2	1.01
40 × 15	1.5	1.26
40 × 15	2.0	1.65
40 × 20	1.0	0.93
40 × 20	1.2	1.11
40 × 20	1.5	1.38
40 × 20	2.0	1.81
40 × 20	2.5	2.03
40 × 20	3.0	2.65
40 × 25	1.5	1.44
40 × 25	2.0	1.89
40 × 25	2.5	2.23
40 × 27	1.5	1.55
40 × 30	1.0	1.09
40 × 30	1.2	1.30
40 × 30	1.5	1.62
40 × 30	2.0	2.13
40 × 30	3.0	3.12
50 × 10	1.5	1.38
50 × 20	1.0	1.09
50 × 20	1.2	1.30
50 × 20	1.5	1.62
50 × 20	2.0	2.13
50 × 25	1.2	1.42
50 × 25	1.5	1.76
50 × 25	2.0	2.32
50 × 25	2.5	2.69
50 × 25	3.0	3.41
50 × 30	1.2	1.50
50 × 30	1.5	1.86
50 × 30	2.0	2.45
50 × 30	2.5	2.92
50 × 30	3.0	3.45
50 × 30	3.2	3.66
50 × 30	4.0	4.46
50 × 30	5.0	5.40
50 × 40	2.0	2.77
50 × 40	3.0	4.08
60 × 10	1.5	1.62
60 × 20	1.2	1.50
60 × 20	1.5	1.86
60 × 20	2.0	2.45
60 × 30	1.2	1.69
60 × 30	1.5	2.10
60 × 30	2.0	2.77
60 × 30	3.0	4.08
60 × 40	1.5	2.34
60 × 40	2.0	3.09
60 × 40	2.5	3.83
60 × 40	3.0	4.56
60 × 40	4.0	5.98
60 × 40	5.0	6.97
60 × 40	6.3	8.49
70 × 20	2.0	2.77
70 × 40	2.0	3.41
70 × 40	3.0	5.04
70 × 50	2.0	3.56
70 × 50	2.5	4.39
70 × 50	3.0	5.19
70 × 50	4.0	6.71
80 × 20	2.0	3.09
80 × 30	3.0	5.04
80 × 40	1.5	2.81
80 × 40	2.0	3.73
80 × 40	2.5	4.63
80 × 40	3.0	5.52
80 × 40	3.2	5.67
80 × 40	4.0	7.26
80 × 40	5.0	8.94
80 × 40	6.3	10.5
80 × 40	8.0	12.8
80 × 50	3.0	6.00
80 × 50	4.0	7.34
80 × 50	5.0	9.01
80 × 50	6.0	10.81
80 × 60	2.0	4.37
80 × 60	3.0	6.47
80 × 60	4.0	8.53
90 × 50	3.0	6.28
90 × 50	3.6	7.46
90 × 50	5.0	10.11
90 × 50	6.3	12.5
90 × 50	8.0	15.3
100 × 40	1.5	3.29
100 × 40	2.0	4.37
100 × 40	3.0	6.47
100 × 40	4.0	8.53
100 × 40	5.0	10.66
100 × 40	6.0	12.80
100 × 50	2.0	4.69
100 × 50	2.5	5.63
100 × 50	3.0	6.95
100 × 50	3.2	7.18
100 × 50	4.0	9.17
100 × 50	5.0	11.34
100 × 50	6.3	13.4
100 × 50	8.0	16.6
100 × 60	2.0	5.00
100 × 60	3.0	7.43
100 × 60	4.0	9.81
100 × 60	3.6	8.59
100 × 60	5.0	12.13
100 × 60	6.3	14.4
100 × 60	8.0	17.8
100 × 80	2.0	5.64
100 × 80	3.0	8.39
100 × 80	4.0	11.08
100 × 80	5.0	13.85
100 × 80	6.0	16.62
100 × 80	8.0	22.16
120 × 40	2.0	5.00
120 × 40	3.0	7.43
120 × 40	4.0	9.81
120 × 40	5.0	12.26
120 × 60	2.0	5.64
120 × 60	3.0	8.39
120 × 60	3.6	9.72
120 × 60	4.0	11.08
120 × 60	5.0	13.73
120 × 60	6.3	16.40
120 × 60	8.0	20.40
120 × 80	2.0	6.28
120 × 80	2.5	7.65
120 × 80	3.0	9.34
120 × 80	4.0	12.36
120 × 80	5.0	15.32
120 × 80	6.0	17.60
120 × 80	6.3	18.4
120 × 80	8.0	22.9
120 × 80	10.0	27.9
120 × 100	3.0	9.45
120 × 100	4.0	12.60
120 × 100	5.0	15.74
120 × 100	6.0	18.89
120 × 100	8.0	25.19
140 × 60	3.0	9.32
140 × 70	3.0	8.79
140 × 70	4.0	11.72
140 × 70	5.0	14.65
140 × 70	6.0	17.58
140 × 70	8.0	23.44
140 × 70	10.0	29.30
140 × 80	3.0	9.21
140 × 80	4.0	12.28
140 × 80	5.0	15.35
140 × 80	6.0	18.41
140 × 80	8.0	24.55
140 × 80	10.0	30.69
140 × 100	3.0	11.27
150 × 50	2.0	6.28
150 × 50	3.0	9.34
150 × 50	4.0	12.56
150 × 50	5.0	15.70
150 × 50	6.0	18.84
150 × 80	3.0	10.77
150 × 80	4.0	14.36
150 × 80	5.0	17.95
150 × 80	6.0	21.54
150 × 80	8.0	28.72
150 × 80	10.0	35.90
150 × 100	3.0	11.74
150 × 100	4.0	15.55
150 × 100	5.0	19.31
150 × 100	6.0	22.30
150 × 100	6.3	23.3
150 × 100	8.0	29.10
150 × 100	10.0	35.70
150 × 100	12.5	43.6
160 × 80	3.0	11.26
160 × 80	4.0	15.01
160 × 80	5.0	18.51
160 × 80	6.0	21.30
160 × 80	6.3	22.3
160 × 80	8.0	27.90
160 × 80	10.0	34.2
160 × 80	12.5	41.6
160 × 90	3.0	10.69
160 × 90	4.0	14.25
160 × 90	5.0	17.81
160 × 90	6.0	21.38
160 × 90	8.0	28.50
160 × 90	10.0	35.63
160 × 90	12.0	42.75
180× 80	3.0	11.34
180× 80	4.0	15.12
180× 80	5.0	18.89
180× 80	6.0	22.67
180× 80	8.0	30.23
180 × 100	3.0	12.21
180 × 100	4.0	16.28
180 × 100	5.0	20.35
180 × 100	6.0	24.42
180 × 100	8.0	32.55
180 × 100	10.0	40.69
180 × 100	12.0	48.83
200 × 50	3.0	11.25
200 × 50	4.0	15.00
200 × 50	5.0	18.75
200 × 50	6.0	22.50
200 × 80	3.0	12.39
200 × 80	4.0	16.52
200 × 80	5.0	20.65
200 × 80	6.0	24.78
200 × 80	8.0	33.04
200 × 100	3	14.13
200 × 100	4	18.74
200 × 100	5	23.3
200 × 100	6	27
200 × 100	6.3	28.3
200 × 100	8	35.4
200 × 100	10	43.6
200 × 100	12.5	53.4
200 × 100	16	66.4
200 × 120	5	24.2
200 × 120	6.3	30.3
200 × 120	8	37.9
200 × 120	10	46.7
200 × 120	12.5	57.3
200 × 150	5	26.6
200 × 150	6.3	33.2
200 × 150	8	41.7
200 × 150	10	51.4
200 × 150	12.5	63.2
200 × 150	16	78.9
250 × 100	5	26.6
250 × 100	6.3	33.2
250 × 100	8	41.7
250 × 100	10	51.4
250 × 100	12.5	63.2
250 × 100	16	78.9
250 × 150	5	30.5
250 × 150	6.3	38.2
250 × 150	8	48.0
250 × 150	10	59.3
250 × 150	12.5	73
250 × 150	16	91.5
300 × 100	6.3	38.2
300 × 100	8	48
300 × 100	10	59.3
300 × 100	12.5	73
300 × 100	16	91.5
300 × 150	4	27
300 × 150	5	33.75
300 × 150	6	40.5
300 × 150	8	54
300 × 150	10	67.5
300 × 150	12	81
300 × 200	6.3	48.10
300 × 200	8.0	60.50
300 × 200	10.0	75
300 × 200	12.5	92.6
300 × 200	16.0	117
300 × 250	6.3	53
300 × 250	8.0	66.8
300 × 250	10.0	82.8
300 × 250	12.5	102
300 × 250	16.0	129
350 × 150	6.3	48.1
350 × 150	8.0	60.5
350 × 150	10.0	75
350 × 150	12.5	92.6
350 × 150	16.0	117
350 × 250	8.0	73.1
350 × 250	10.0	90.7
350 × 250	12.5	112
350 × 250	16.0	142
400 × 150	6.3	53
400 × 150	8.0	66.8
400 × 150	10.0	82.8
400 × 150	12.5	102
400 × 150	16.0	129
400 × 200	6.3	57.9
400 × 200	8.0	73.10
400 × 200	10.0	90.70
400 × 200	12.5	112
400 × 200	16.0	142
400 × 300	10.0	106
400 × 300	12.5	132
400 × 300	16.0	167
450 × 250	8.0	85.7
450 × 250	10.0	106
450 × 250	12.5	132
450 × 250	16.0	167
500 × 200	8.0	84.65
500 × 200	10.0	105.82
500 × 200	12.0	126.98
500 × 300	8.0	96.91
500 × 300	10.0	121.14
500 × 300	12.0	145.37

Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.Stainless steel flat tube The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
Stainless steel flat tube Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
