To start this process smoothly:
- Send us a drawing: It can be hand-drawn or in CAD format, whichever you prefer.
- Provide us with information about your project: material grade, quantity, length, surface finish, specific testing requirements, required dimensional tolerances, and any other relevant details.
- Unit B, 9/F, Worldwide Centre, 123 Tung Chau Street, Tai Kok Tsui Kowloon.HongKong
- T: +852-92992995
- E: sales@peakkong.com
+
- Standard: EN10210-2006
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: EN10210
- Steel grade: S460NH、S460NLH
- Tolerance: EN 10163-3
- Certificate: According to EN 10204 - Type 2.2 or 3.1b
European standard EN 10210-1 high-strength square hollow profile S460NH, minimum yield strength 460Mpa, low temperature impact test -20℃ New Steel shareholders have thousands of tons of hot-rolled hot-formed finished square hollow profiles of different sizes S460NH seamless and welded types.
EN 10210-1 Specification for hot-worked structural hollow sections of non-alloy steels and fine-grained steels
The EN 10210 standard has 3 parts, they are:EN 10210 Part 1: Technical delivery conditions
EN 10210 Part 2: Tolerances, dimensions and section properties
EN 10201 Part 3: Technical delivery conditions for high-strength weathering steels
S355J0H, S355J2H, S355NH, S355NLH, S460NH, S460NLH.
As a full range, our size range is the broadest in the industry. It includes round tubes, square tubes, rectangular tubes and special shapes such as hexagonal and oval. Extra long sections available on request.

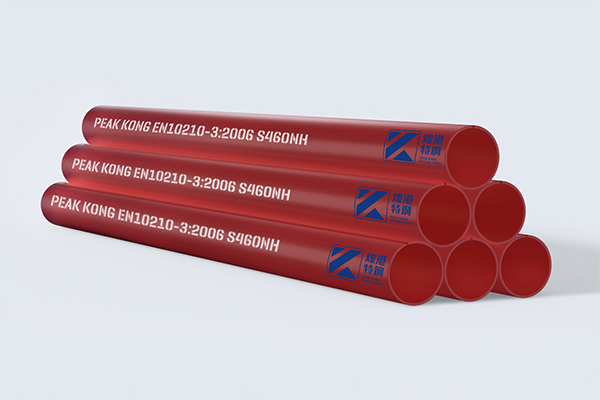

Typical dimensions are:- Round: external dimensions from 21.3 mm to 1016 mm, wall thickness up to 35 mm

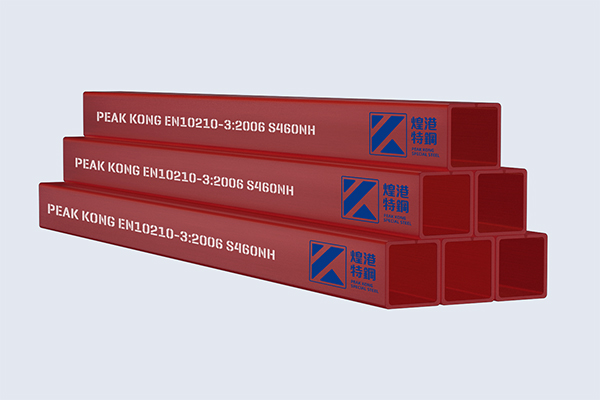

- Square: external dimensions from 40×40 mm to 500×500 mm, wall thickness up to 25 mm
- Rectangular: external dimensions from 50×30 mm to 500×300 mm, wall thickness up to 20 mm
- Packaging: Bundles, anti-corrosive insulation, varnish coated, ends can be chamfered or square cut, end caps certified and supplementary tested, surface treatment and identification markings
- Surface protection: black (no coating color), varnish/oil coating, pre-galvanized, hot-dip galvanized, etc.
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.S460NH/S460NLH Structural Circular Hollow Section The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
S460NH/S460NLH Structural Circular Hollow Section Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
