- Standard: BS970:1, EN 10088-3
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: ASTM A1069, EN 13919, EN 10365
- Steel grade: 316s11, 316s31, 316s33, 317s16, 1.4301, 1.4307, 1.4401, 1.4404, 1.4436
- Tolerance: EN 10056-2:1993
- Certificate: According to EN10204-2.2 or 3.1B

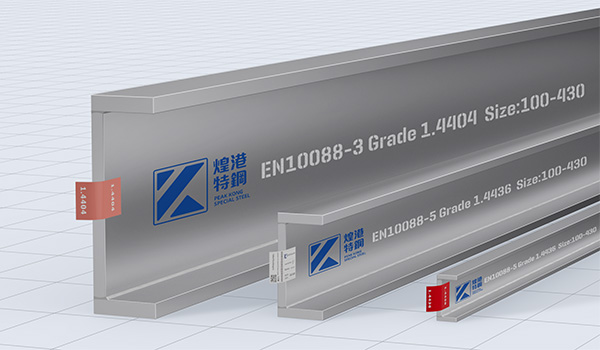

Peakkong Special Steel provides stainless steel channel steel PFC that complies with EN 10365 specifications, and the tolerances comply with EN 10279:2000. 1.4301, 1.4307, 1.4401, 1.4404, 1.4462, 2205, 2507, 304, 304L, 316, 316L, 317L, 316s11, 316s31, 316s33, 317s16 and other grades, but with the flexibility of the laser welding process, more possibilities, special alloy stainless steel grades or duplex/super duplex stainless steel grades can be produced in series.
Within the Stainless Steel Channel - PFC size range, several products are available in the same height and with different flange widths to best meet the required structural requirements.
If your project requires something non-standard and your ideal size is not in the list of ‘standard’ sizes readily available then please ask our experienced sales team who can offer the right solution to help satisfy you exact requirement. For more information, please contact our sales team.
| Description | Execution | kg/m | h /mm | b /mm | s /mm | t /mm |
|---|---|---|---|---|---|---|
| PFC 100x50x10 | Laser | 10.1 | 100 | 50 | 5 | 8.5 |
| PFC 125x65x15 | Laser | 14.6 | 125 | 65 | 5.5 | 9.5 |
| PFC 150x75x18 | Laser | 17.7 | 150 | 75 | 5.5 | 10 |
| PFC 150x90x24 | Laser | 23.8 | 150 | 90 | 6.5 | 12 |
| PFC 180x75x20 | Laser | 20.2 | 180 | 75 | 6 | 10.5 |
| PFC 180x90x26 | Laser | 26.1 | 180 | 90 | 6.5 | 12.5 |
| PFC 200x75x23 | Laser | 23.4 | 200 | 75 | 6 | 12.5 |
| PFC 200x90x30 | Laser | 29.8 | 200 | 90 | 7 | 14 |
| PFC 230x75x26 | Laser | 25.7 | 230 | 75 | 6.5 | 12.5 |
| PFC 230x90x32 | Laser | 32.3 | 230 | 90 | 7.5 | 14 |
| PFC 260x75x28 | Laser | 27.6 | 260 | 75 | 7 | 12 |
| PFC 260x90x35 | Laser | 35.0 | 260 | 90 | 8 | 14 |
| PFC 300x90x41 | Laser | 41.7 | 300 | 90 | 9 | 15.5 |
| PFC 300x100x46 | Laser | 45.6 | 300 | 100 | 9 | 16.5 |
| PFC 380x100x54 | Laser | 54.2 | 380 | 100 | 9.5 | 17.5 |
| PFC 430x100x64 | Laser | 64.9 | 430 | 100 | 11 | 19 |
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.British Stainless steel Parallel Flange Channels Sections The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
British Stainless steel Parallel Flange Channels Sections Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
