To start this process smoothly:
- Send us a drawing: It can be hand-drawn or in CAD format, whichever you prefer.
- Provide us with information about your project: material grade, quantity, length, surface finish, specific testing requirements, required dimensional tolerances, and any other relevant details.
- Unit B, 9/F, Worldwide Centre, 123 Tung Chau Street, Tai Kok Tsui Kowloon.HongKong
- T: +852-92992995
- E: sales@peakkong.com
+

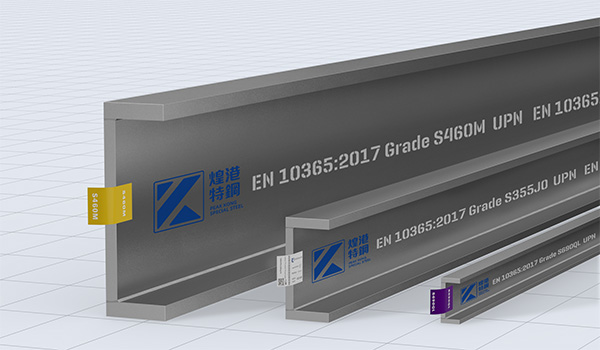

- Standard: EN 10365:2017
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: ASTM A1069, EN 13919
- Steel grade: S275J0, S355J0, S460J0, S460M, S460ML, S690QL
- Tolerance: BS 4-1:2005, DIN 1026-2
- Certificate: According to EN10204-2.2 or 3.1B
| Description | Execution | kg/m | h /mm | b /mm | s /mm | t /mm | r1 /mm | r2 /mm |
|---|---|---|---|---|---|---|---|---|
| UPN 80 | Laser | 8.65 | 80 | 45 | 6 | 8 | 8 | 4 |
| UPN 100 | Laser | 10.6 | 100 | 50 | 6 | 8.5 | 8.5 | 4.5 |
| UPN 120 | Laser | 13.4 | 120 | 55 | 7 | 9 | 9 | 4.5 |
| UPN 140 | Laser | 16.0 | 140 | 60 | 7 | 10 | 10 | 5 |
| UPN 160 | Laser | 18.8 | 160 | 65 | 7.5 | 10.5 | 10.5 | 5.5 |
| UPN 180 | Laser | 22.0 | 180 | 70 | 8 | 11 | 11 | 5.5 |
| UPN 200 | Laser | 25.3 | 200 | 75 | 8.5 | 11.5 | 11.5 | 6 |
| UPN 220 | Laser | 29.4 | 220 | 80 | 9 | 12.5 | 12.5 | 6.5 |
| UPN 240 | Laser | 33.2 | 240 | 85 | 9.5 | 13 | 13 | 6.5 |
| UPN 260 | Laser | 37.9 | 260 | 90 | 10 | 14 | 14 | 7 |
| UPN 280 | Laser | 41.8 | 280 | 95 | 10 | 15 | 15 | 7.5 |
| UPN 300 | Laser | 46.2 | 300 | 100 | 10 | 16 | 16 | 8 |
| UPN 320 | Laser | 59.5 | 320 | 100 | 14 | 17.5 | 17.5 | 8.75 |
| UPN 350 | Laser | 60.6 | 350 | 100 | 14 | 16 | 16 | 8 |
| UPN 380 | Laser | 63.1 | 380 | 102 | 13.5 | 16 | 16 | 8 |
| UPN 400 | Laser | 71.8 | 400 | 110 | 14 | 18 | 18 | 9 |
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.European UPN Channels steel sections The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
European UPN Channels steel sections Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
