- Standard: EN 10088-3, EN10365, DIN1025
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: ASTM A1069, EN 13919
- Steel grade: 1.4301, 1.4307, 1.4401, 1.4404, 1.4436, 1.4507
- Tolerance: EN 10056-2:1993, EN10088-3
- Certificate: According to EN10204-2.2 or 3.1B
Peakkong Special Steel can produce various sizes of UPN stainless steel channel in a range of production sizes, complying with the EN10088-3 1D standard specification. 1.4301, 1.4307, 1.4401, 1.4404, 1.4462, 2205, 2507, 304, 304L, 316, 316L, 317L, 316s11, 316s31, 316s33, 317s16 stainless steel grades.
We use state-of-the-art laser welding technology to manufacture these stainless steel structural profiles through our precision laser welding lines located in China, ensuring fast delivery worldwide.
We can manufacture custom stainless steel channel profiles in custom sizes and lengths If you are looking for stainless steel angle profiles in non-standard sizes, with different thicknesses between flange and web, or in specific lengths up to 12 meters, we can also help you and offer special grades. For more information, please contact our sales team.

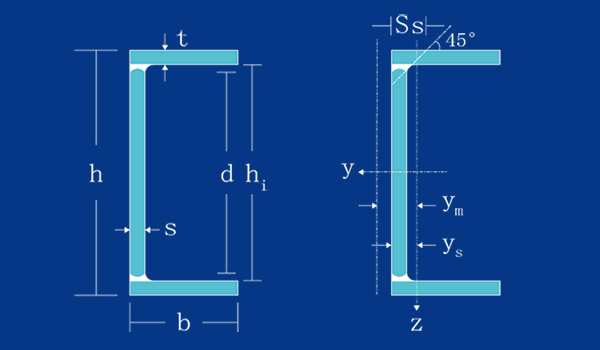

| Description | Execution | kg/m | h /mm | b /mm | s /mm | t /mm | r1 /mm | r2 /mm |
|---|---|---|---|---|---|---|---|---|
| UPN 80 | Laser | 8.65 | 80 | 45 | 6 | 8 | 8 | 4 |
| UPN 100 | Laser | 10.6 | 100 | 50 | 6 | 8.5 | 8.5 | 4.5 |
| UPN 120 | Laser | 13.4 | 120 | 55 | 7 | 9 | 9 | 4.5 |
| UPN 140 | Laser | 16.0 | 140 | 60 | 7 | 10 | 10 | 5 |
| UPN 160 | Laser | 18.8 | 160 | 65 | 7.5 | 10.5 | 10.5 | 5.5 |
| UPN 180 | Laser | 22.0 | 180 | 70 | 8 | 11 | 11 | 5.5 |
| UPN 200 | Laser | 25.3 | 200 | 75 | 8.5 | 11.5 | 11.5 | 6 |
| UPN 220 | Laser | 29.4 | 220 | 80 | 9 | 12.5 | 12.5 | 6.5 |
| UPN 240 | Laser | 33.2 | 240 | 85 | 9.5 | 13 | 13 | 6.5 |
| UPN 260 | Laser | 37.9 | 260 | 90 | 10 | 14 | 14 | 7 |
| UPN 280 | Laser | 41.8 | 280 | 95 | 10 | 15 | 15 | 7.5 |
| UPN 300 | Laser | 46.2 | 300 | 100 | 10 | 16 | 16 | 8 |
| UPN 320 | Laser | 59.5 | 320 | 100 | 14 | 17.5 | 17.5 | 8.75 |
| UPN 350 | Laser | 60.6 | 350 | 100 | 14 | 16 | 16 | 8 |
| UPN 380 | Laser | 63.1 | 380 | 102 | 13.5 | 16 | 16 | 8 |
| UPN 400 | Laser | 71.8 | 400 | 110 | 14 | 18 | 18 | 9 |
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.European Stainless steel UPN Channels steel sections The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.

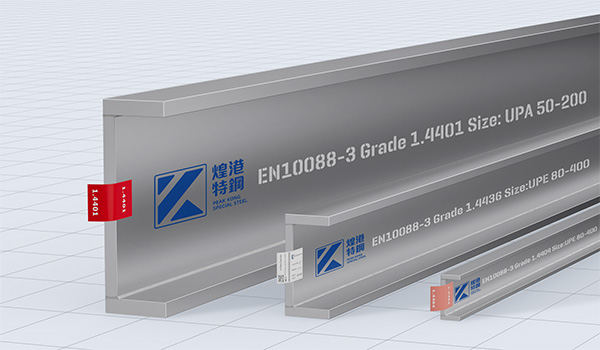

European Stainless steel UPN Channels steel sections Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
