European Stainless Steel Unequal Angles sections

Standard: EN 10088-3, EN10365, DIN1025
Technology: ISO 15614-11 or ISO 15614-14
Fabrication Craftsmanship: ASTM A1069, EN 13919
Steel grade: 1.4301, 1.4307, 1.4401, 1.4404, 1.4436, 1.4507
Tolerance: EN 10056-2:1993, EN10088-3
Certificate: According to EN10204-2.2 or 3.1B

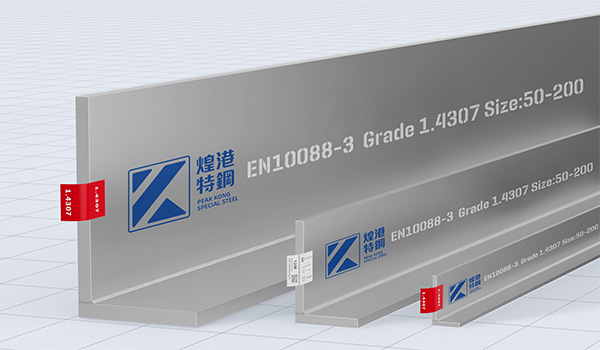

Peakkong Special Steel can produce stainless steel angle steel of various sizes, including equilateral and unequal sides. The dimensions are defined in imperial or metric systems and comply with the EN10088-3 1D standard specification. 1.4301, 1.4307, 1.4401, 1.4404, 1.4462, 2205, 2507, 304, 304L, 316, 316L, 317L, 316s11, 316s31, 316s33, 317s16 stainless steel grades.

We use state-of-the-art laser welding technology to manufacture these structural profiles through our precision laser welding lines located in China, ensuring fast delivery worldwide.

We can manufacture custom angle profiles with custom sizes and lengths If you are looking for stainless steel angle profiles in non-standard sizes, with different thicknesses between flange and web, or in specific lengths up to 12 meters, we can also help you and offer special grades. For more information, please contact our sales team.

Test certificate available - please specify when ordering.

European Stainless Steel Unequal Angles sectionsPDF

Search:

Description	Execution	kg/m	d/mm	b /mm	t /mm	r /mm
L 30x15x3	Laser	1.03	30	15	3	5
L 30x20x3	Laser	1.15	30	20	3	5
L 30x20x4	Laser	1.49	30	20	4	5
L 40x20x3	Laser	1.39	40	20	3	5
L 40x20x4	Laser	1.82	40	20	4	6
L 40x20x5	Laser	2.23	40	20	5	6
L 40x30x3	Laser	1.63	40	30	3	5
L 40x30x4	Laser	2.14	40	30	4	6
L 40x30x5	Laser	2.63	40	30	5	6
L 45x30x3	Laser	1.77	45	30	3	7
L 45x30x4	Laser	2.31	45	30	4	7
L 45x30x5	Laser	2.84	45	30	5	7
L 50x30x3	Laser	1.89	50	30	3	7
L 50x30x4	Laser	2.47	50	30	4	7
L 50x30x5	Laser	3.04	50	30	5	7
L 50x40x3	Laser	2.13	50	40	3	7
L 50x40x4	Laser	2.79	50	40	4	7
L 50x40x5	Laser	3.44	50	40	5	7
L 60x30x5	Laser	3.45	60	30	5	8
L 60x30x6	Laser	4.09	60	30	6	8
L 60x30x7	Laser	4.7	60	30	7	8
L 60x40x5	Laser	3.85	60	40	5	8/2
L 60x40x6	Laser	4.52	60	40	6	8/2
L 65x50x5	Laser	4.4	65	50	5	9/2
L 65x50x7	Laser	6.05	65	50	7	9/2
L 65x50x9	Laser	7.64	65	50	9	9/2
L 70x50x6	Laser	5.48	70	50	6	9/2
L 70x50x7	Laser	6.33	70	50	7	9/2
L 70x50x8	Laser	7.17	70	50	8	9/2
L 70x50x9	Laser	8	70	50	9	9/2
L 75x50x6	Laser	5.72	75	50	6	9/2
L 75x50x7	Laser	6.61	75	50	7	9/2
L 75x50x8	Laser	7.49	75	50	8	9/2
L 75x55x6	Laser	5.96	75	55	6	9/2
L 75x55x7	Laser	6.89	75	55	7	9/2
L 75x55x8	Laser	7.81	75	55	8	9/2
L 75x55x9	Laser	8.72	75	55	9	9/2
L 80x40x6	Laser	5.48	80	40	6	10/2
L 80x40x8	Laser	7.17	80	40	8	10/2
L 80x65x6	Laser	6.68	80	65	6	10/2
L 80x65x8	Laser	8.77	80	65	8	10/2
L 80x65x10	Laser	10.8	80	65	10	10/2
L 90x60x6	Laser	6.92	90	60	6	11/2
L 90x60x8	Laser	9.09	90	60	8	11/2
L 100x50x6	Laser	6.92	100	50	6	12/2
L 100x50x8	Laser	9.09	100	50	8	12/2
L 100x50x10	Laser	11.2	100	50	10	12/2
L 100x65x6	Laser	7.64	100	65	6	12/2
L 100x65x7	Laser	8.85	100	65	7	12/2
L 100x65x8	Laser	10.05	100	65	8	12/2
L 100x65x9	Laser	11.24	100	65	9	12/2
L 100x65x10	Laser	12.4	100	65	10	12/2
L 100x75x6	Laser	8.12	100	75	6	12/2
L 100x75x7	Laser	9.41	100	75	7	12/2
L 100x75x8	Laser	10.69	100	75	8	12/2
L 100x75x9	Laser	11.96	100	75	9	12/2
L 100x75x10	Laser	13.2	100	75	10	12/2
L 120x80x6	Laser	9.32	120	80	6	13/2
L 120x80x8	Laser	12.29	120	80	8	13/2
L 120x80x10	Laser	15.2	120	80	10	13/2
L 130x65x6	Laser	9.08	130	65	6	14/2
L 130x65x8	Laser	11.97	130	65	8	14/2
L 130x65x10	Laser	14.8	130	65	10	14/2
L 130x75x6	Laser	9.56	130	75	6	14/2
L 130x75x8	Laser	12.61	130	75	8	14/2
L 130x75x10	Laser	15.6	130	75	10	14/2
L 130x90x10	Laser	16.8	130	90	10	14/2
L 130x90x12	Laser	19.97	130	90	12	14/2
L 140x90x8	Laser	14.21	140	90	8	15/2
L 140x90x10	Laser	17.6	140	90	10	15/2
L 140x90x12	Laser	20.93	140	90	12	15/2
L 150x75x8	Laser	13.89	150	75	8	16/2
L 150x75x10	Laser	17.2	150	75	10	16/2
L 150x90x10	Laser	18.4	150	90	10	16/2
L 150x90x11	Laser	20.16	150	90	11	16/2
L 150x90x12	Laser	21.89	150	90	12	16/2
L 150x100x8	Laser	15.49	150	100	8	17/2
L 150x100x10	Laser	19.2	150	100	10	17/2
L 150x100x12	Laser	22.85	150	100	12	17/2
L 160x100x8	Laser	14.85	160	100	8	17/2
L 160x100x10	Laser	18.4	160	100	10	17/2
L 160x100x12	Laser	21.89	160	100	12	17/2
L 180x90x8	Laser	16.77	180	90	8	18/2
L 180x90x10	Laser	20.8	180	90	10	18/2
L 180x90x12	Laser	24.77	180	90	12	18/2
L 200x100x8	Laser	18.69	200	100	8	20/2
L 200x100x10	Laser	23.2	200	100	10	20/2
L 200x100x12	Laser	27.65	200	100	12	20/2
L 200x100x15	Laser	34.2	200	100	15	20/2
L 200x100x16	Laser	36.36	200	100	16	20/2
L 200x150x12	Laser	32.45	200	150	12	20/2
L 200x150x15	Laser	40.2	200	150	15	20/2

Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.European Stainless Steel Unequal Angles sections The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
European Stainless Steel Unequal Angles sections Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
