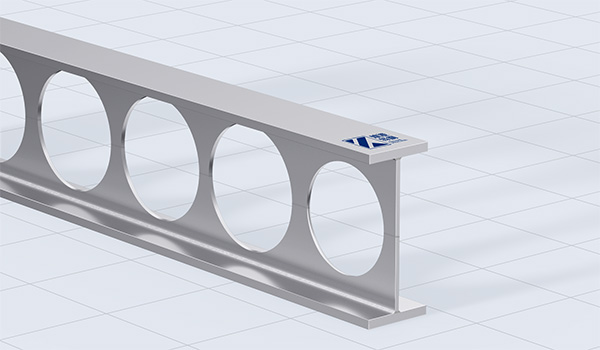

ACB cellular beams

Standard: EN 10088-3, EN10365, DIN1025
Technology: ISO 15614-11 or ISO 15614-14
Fabrication Craftsmanship: ASTM A1069, EN 13919
Steel grade: 1.4301, 1.4307, 1.4401, 1.4404, 1.4436, 1.4507
Tolerance: EN 10056-2:1993, EN10088-3
Certificate: According to EN10204-2.2 or 3.1B

The following grades: 1.4301, 1.4307, 1.4401, 1.4404, 1.4436, 1.4507, they are defined by EN 10088-3, EN10365, DIN1025. Other material grades are available upon request, please view the complete steel grade list.

ACB cellular beamsPDF

Search:

Description	Execution	kg/m	h /mm	d /mm	w /mm	A_L m²/m
IPE A 200	Laser	17.1	290.4	210	52.5	0.7
IPE 200	Laser	20.7	293.4	210	52.5	0.7
IPE O 200	Laser	23.2	295.4	210	52.5	0.7
IPE A 220	Laser	20.6	320.1	230	57.5	0.8
IPE 220	Laser	24.3	323.1	230	57.5	0.8
IPE O 220	Laser	27.2	325.1	230	57.5	0.8
IPE A 240	Laser	24.3	349.7	250	62.5	0.8
IPE 240	Laser	28.5	352.7	250	62.5	0.8
IPE O 240	Laser	31.9	354.7	250	62.5	0.8
IPE A 270	Laser	28.6	394.3	280	70	0.9
IPE 270	Laser	33.5	397.3	280	70	0.9
IPE O 270	Laser	39.4	401.3	280	70	1
IPE A 300	Laser	34	441.2	315	78.75	1
IPE 300	Laser	39.2	444.2	315	78.75	1.1
IPE O 300	Laser	45.9	448.2	315	78.75	1.1
IPE A 330	Laser	40	488.2	350	87.5	1.1
IPE 330	Laser	45.7	491.2	350	87.5	1.1
IPE O 330	Laser	53.1	495.2	350	87.5	1.2
IPE A 360	Laser	46.9	533.3	380	95	1.2
IPE 360	Laser	53.1	535.7	380	95	1.2
IPE O 360	Laser	61.5	539.7	380	95	1.2
IPE A 400	Laser	53.6	592.1	420	105	1.3
IPE 400	Laser	61.7	595.1	420	105	1.3
IPE O 400	Laser	70.4	599.1	420	105	1.3
IPE A 450	Laser	62.6	668.7	475	118.75	1.4
IPE 450	Laser	71.9	671.7	475	118.75	1.5
IPE O 450	Laser	85.7	677.7	475	118.75	1.5
IPE A 500	Laser	73.8	742.9	525	131.25	1.6
IPE 500	Laser	84	745.9	525	131.25	1.6
IPE O 500	Laser	99.4	751.9	525	131.25	1.6
IPE A 550	Laser	85.6	819.5	580	145	1.7
IPE 550	Laser	97.5	822.5	580	145	1.7
IPE O 550	Laser	113.4	828.5	580	145	1.7
IPE A 600	Laser	99.9	893.7	630	157.5	1.8
IPE 600	Laser	113.1	896.7	630	157.5	1.8
IPE O 600	Laser	142.8	906.7	630	157.5	1.8
IPE 750 x 147	Laser	134.5	1127.2	790	197.5	2.3
IPE 750 x 173	Laser	159.9	1136.2	790	197.5	2.3
IPE 750 x 196	Laser	181.9	1144.2	790	197.5	2.3
HE 260 AA	Laser	51.7	368.9	275	68.75	1.4
HE 260 A	Laser	65.3	374.9	275	68.75	1.4
HE 260 B	Laser	89.2	384.9	275	68.75	1.4
HE 260 M	Laser	165.6	414.9	275	68.75	1.5
HE 280 AA	Laser	58.5	398.5	295	73.75	1.5
HE 280 A	Laser	73.2	404.5	295	73.75	1.5
HE 280 B	Laser	98.9	414.5	295	73.75	1.5
HE 280 M	Laser	181.1	444.5	295	73.75	1.6
HE 300 AA	Laser	66.6	427.2	315	78.75	1.6
HE 300 A	Laser	84.8	434.2	315	78.75	1.6
HE 300 B	Laser	112.4	444.2	315	78.75	1.6
HE 300 M	Laser	229.1	484.2	315	78.75	1.7
HE 320 AA	Laser	70.7	454.9	335	83.75	1.6
HE 320 A	Laser	93.6	463.9	335	83.75	1.6
HE 320 B	Laser	121.5	473.9	335	83.75	1.7
HE 320 M	Laser	235.6	512.9	335	83.75	1.8
HE 340 AA	Laser	74.9	486	360	90	1.7
HE 340 A	Laser	100.3	496	360	90	1.7
HE 340 B	Laser	128.5	506	360	90	1.7
HE 340 M	Laser	238.0	543	360	90	1.8
HE 360 AA	Laser	79.2	514.7	380	95	1.7
HE 360 A	Laser	107.1	525.7	380	95	1.7
HE 360 B	Laser	135.6	535.7	380	95	1.7
HE 360 M	Laser	239.9	570.7	380	95	1.8
HE 400 AA	Laser	87.3	573.1	420	105	1.8
HE 400 A	Laser	118.9	585.1	420	105	1.8
HE 400 B	Laser	148.0	595.1	420	105	1.8
HE 400 M	Laser	244.4	627.1	420	105	1.9
HE 450 AA	Laser	93.7	646.7	475	118.75	1.8
HE 450 A	Laser	132.8	661.7	475	118.75	1.9
HE 450 B	Laser	162.7	671.7	475	118.75	1.9
HE 450 M	Laser	250.7	699.7	475	118.75	1.9
HE 500 AA	Laser	100.5	717.9	525	131.25	1.9
HE 500 A	Laser	147.2	735.9	525	131.25	1.9
HE 500 B	Laser	177.8	745.9	525	131.25	2
HE 500 M	Laser	256.4	769.9	525	131.25	2
HE 550 AA	Laser	111.7	794.5	580	145	2
HE 550 A	Laser	157.2	812.5	580	145	2
HE 550 B	Laser	188.6	822.5	580	145	2
HE 550 M	Laser	263	844.5	580	145	2.1
HE 600 AA	Laser	119.4	867.7	630	157.5	2.1
HE 600 A	Laser	167.7	886.7	630	157.5	2.1
HE 600 B	Laser	199.9	896.7	630	157.5	2.1
HE 600 M	Laser	269.1	916.7	630	157.5	2.2
HE 600 x 337	Laser	317	928.7	630	157.5	2.2
HE 600 x 399	Laser	375.8	944.7	630	157.5	2.3
HE 650 AA	Laser	127.4	945.8	690	172.5	2.2
HE 650 A	Laser	178.3	965.8	690	172.5	2.2
HE 650 B	Laser	211.2	975.8	690	172.5	2.2
HE 650 M	Laser	275.6	993.8	690	172.5	2.3
HE 650 x 343	Laser	322.3	1005.8	690	172.5	2.3
HE 650 x 407	Laser	382.3	1021.8	690	172.5	2.3
HE 700 AA	Laser	138.2	1017.6	735	183.75	2.2
HE 700 A	Laser	191.5	1037.6	735	183.75	2.3
HE 700 B	Laser	225.3	1047.6	735	183.75	2.3
HE 700 M	Laser	281.8	1063.6	735	183.75	2.3
HE 700 x 352	Laser	329.7	1075.6	735	183.75	2.4
HE 700 x 418	Laser	391.1	1091.6	735	183.75	2.4
HE 800 AA	Laser	157.3	1168.4	840	210	2.4
HE 800 A	Laser	209.1	1188.4	840	210	2.4
HE 800 B	Laser	244.6	1198.4	840	210	2.5
HE 800 M	Laser	296	1212.4	840	210	2.5
HE 800 x 373	Laser	347.2	1224.4	840	210	2.5
HE 800 x 444	Laser	413.8	1240.4	840	210	2.6
HE 900 AA	Laser	180.9	1321.6	950	237.5	2.6
HE 900 A	Laser	233.4	1341.6	950	237.5	2.6
HE 900 B	Laser	270.4	1351.6	950	237.5	2.6
HE 900 M	Laser	308.6	1361.6	950	237.5	2.6
HE 900 x 391	Laser	362.2	1373.6	950	237.5	2.7
HE 900 x 466	Laser	431.8	1389.6	950	237.5	2.7
HE 1000 AA	Laser	201.5	1470.1	1050	262.5	2.7
HE 1000 A	Laser	251.6	1490.1	1050	262.5	2.8
HE 1000 B	Laser	290.2	1500.1	1050	262.5	2.8
HE 1000 M	Laser	322.4	1508.1	1050	262.5	2.8
HE 1000 x 393	Laser	362.1	1516.1	1050	262.5	2.8
HE 1000 x 409	Laser	377.8	1520.1	1050	262.5	2.8
HE 1000 x 488	Laser	450.7	1536.1	1050	262.5	2.9
HE 1000 x 579	Laser	534.7	1556.1	1050	262.5	2.9
HL 920 x 345	Laser	320.1	1402.4	999	249.75	3.2
HL 920 x 368	Laser	341.2	1406.4	999	249.75	3.2
HL 920 x 390	Laser	362.6	1411.4	999	249.75	3.2
HL 920 x 420	Laser	392.3	1418.4	999	249.75	3.2
HL 920 x 449	Laser	419.8	1423.4	999	249.75	3.2
HL 920 x 491	Laser	458.3	1432.4	999	249.75	3.2
HL 920 x 537	Laser	501.8	1440.4	999	249.75	3.2
HL 920 x 588	Laser	550.4	1451.4	999	249.75	3.3
HL 920 x 656	Laser	614.4	1462.4	999	249.75	3.3
HL 920 x 725	Laser	678.9	1474.4	999	249.75	3.3
HL 920 x 787	Laser	737.7	1486.4	999	249.75	3.4
HL 920 x 970	Laser	911.0	1518.4	999	249.75	3.4
HL 1000 AA	Laser	275.1	1482.1	1050	262.5	3.2
HL 1000 A	Laser	300.3	1490.1	1050	262.5	3.2
HL 1000 B	Laser	346.7	1500.1	1050	262.5	3.2
HL 1000 M	Laser	385.2	1508.1	1050	262.5	3.2
HL 1000 x 443	Laser	412.9	1512.1	1050	262.5	3.2
HL 1000 x 483	Laser	451.0	1520.1	1050	262.5	3.2
HL 1000 x 539	Laser	503.8	1530.1	1050	262.5	3.3
HL 1000 x 554	Laser	517.1	1532.1	1050	262.5	3.3
HL 1000 x 591	Laser	552.0	1540.1	1050	262.5	3.3
HL 1000 x 642	Laser	599.2	1548.1	1050	262.5	3.3
HL 1000 x 748	Laser	699.6	1568.1	1050	262.5	3.4
HL 1000 x 883	Laser	826.3	1592.1	1050	262.5	3.4
HL 1100 A	Laser	317.9	1640.9	1155	288.75	3.4
HL 1100 B	Laser	362.7	1650.9	1155	288.75	3.4
HL 1100 M	Laser	402.5	1658.9	1155	288.75	3.4
HL 1100 R	Laser	463.0	1668.9	1155	288.75	3.4

Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.ACB cellular beams The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
ACB cellular beams Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
