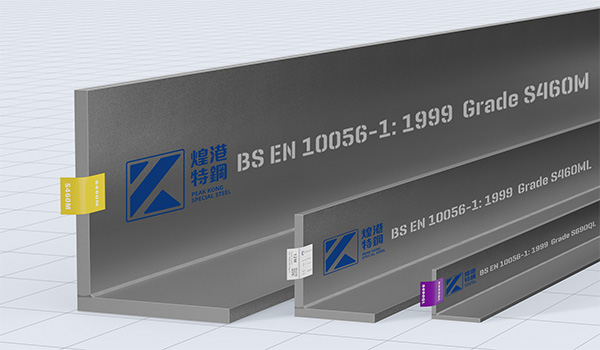

British Equal Angles steel sections
- Standard: BS EN 10056-1: 1999
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: ASTM A1069, EN 13919
- Steel grade: S275J0, S355J0, S460J0, S460M, S460ML, S690QL
- Tolerance: BS EN 10056-1:1999
- Certificate: EN10204-2.2 or 3.1B
In accordance with BS EN 10056-1: 1999, other material grades are available on request, please see the full steel grade list.

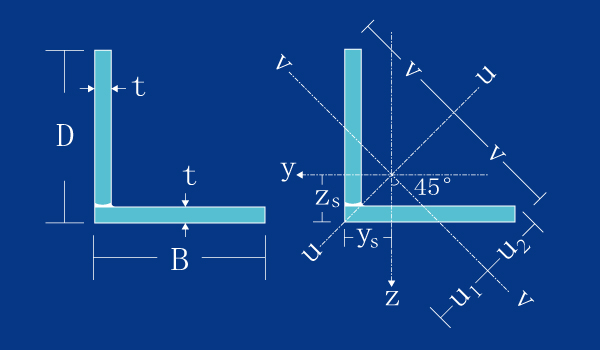

| Description | Execution | kg/m | d = b /mm | t /mm | r /mm |
|---|---|---|---|---|---|
| 30x30x3 | Laser | 1.36 | 30 | 3 | 5 |
| 30x30x4 | Laser | 1.78 | 30 | 4 | 5 |
| 30x30x5 | Laser | 2.18 | 30 | 5 | 5 |
| 35x35x3 | Laser | 1.60 | 35 | 3 | 5 |
| 35x35x4 | Laser | 2.09 | 35 | 4 | 5 |
| 35x35x5 | Laser | 2.57 | 35 | 5 | 5 |
| 38x38x6 | Laser | 3.33 | 38 | 6 | 6 |
| 40x40x3 | Laser | 1.84 | 40 | 3 | 6 |
| 40x40x4 | Laser | 2.42 | 40 | 4 | 6 |
| 40x40x5 | Laser | 2.97 | 40 | 5 | 6 |
| 40x40x6 | Laser | 3.52 | 40 | 6 | 6 |
| 45x45x3 | Laser | 2.09 | 45 | 3 | 7 |
| 45x45x4 | Laser | 2.74 | 45 | 4 | 7 |
| 45x45x5 | Laser | 3.38 | 45 | 5 | 7 |
| 45x45x6 | Laser | 4.00 | 45 | 6 | 7 |
| 45x45x7 | Laser | 4.60 | 45 | 7 | 7 |
| 50x50x3 | Laser | 2.33 | 50 | 3 | 7 |
| 50x50x4 | Laser | 3.06 | 50 | 4 | 7 |
| 50x50x5 | Laser | 3.77 | 50 | 5 | 7 |
| 50x50x6 | Laser | 4.47 | 50 | 6 | 7 |
| 50x50x7 | Laser | 5.15 | 50 | 7 | 7 |
| 50x50x8 | Laser | 5.82 | 50 | 8 | 7 |
| 50x50x9 | Laser | 6.47 | 50 | 9 | 7 |
| 55x55x4 | Laser | 3.38 | 55 | 4 | 8 |
| 55x55x5 | Laser | 4.18 | 55 | 5 | 8 |
| 55x55x6 | Laser | 4.95 | 55 | 6 | 8 |
| 60x60x4 | Laser | 3.70 | 60 | 4 | 8 |
| 60x60x5 | Laser | 4.57 | 60 | 5 | 8 |
| 60x60x6 | Laser | 5.42 | 60 | 6 | 8 |
| 60x60x7 | Laser | 6.26 | 60 | 7 | 8 |
| 60x60x8 | Laser | 7.09 | 60 | 8 | 8 |
| 60x60x10 | Laser | 8.69 | 60 | 10 | 8 |
| 63x63x5 | Laser | 4.82 | 63 | 5 | 9 |
| 63x63x6 | Laser | 5.72 | 63 | 6 | 9 |
| 65x65x4 | Laser | 4.02 | 65 | 4 | 9 |
| 65x65x5 | Laser | 4.97 | 65 | 5 | 9 |
| 65x65x6 | Laser | 5.91 | 65 | 6 | 9 |
| 65x65x7 | Laser | 6.83 | 65 | 7 | 9 |
| 65x65x8 | Laser | 7.73 | 65 | 8 | 9 |
| 65x65x9 | Laser | 8.62 | 65 | 9 | 9 |
| 65x65x10 | Laser | 9.49 | 65 | 10 | 9 |
| 65x65x11 | Laser | 10.3 | 65 | 11 | 9 |
| 70x70x5 | Laser | 5.37 | 70 | 5 | 9 |
| 70x70x6 | Laser | 6.38 | 70 | 6 | 9 |
| 70x70x7 | Laser | 7.38 | 70 | 7 | 9 |
| 70x70x8 | Laser | 8.37 | 70 | 8 | 10 |
| 70x70x9 | Laser | 9.32 | 70 | 9 | 9 |
| 70x70x10 | Laser | 10.3 | 70 | 10 | 9 |
| 75x75x4 | Laser | 4.65 | 75 | 4 | 9 |
| 75x75x5 | Laser | 5.76 | 75 | 5 | 9 |
| 75x75x6 | Laser | 6.85 | 75 | 6 | 9 |
| 75x75x7 | Laser | 7.93 | 75 | 7 | 9 |
| 75x75x8 | Laser | 8.99 | 75 | 8 | 9 |
| 75x75x9 | Laser | 10.0 | 75 | 9 | 9 |
| 75x75x10 | Laser | 11.1 | 75 | 10 | 9 |
| 76x76x5 | Laser | 5.84 | 76 | 5 | 9 |
| 76x76x6.5 | Laser | 7.49 | 76 | 6.5 | 9 |
| 76x76x8 | Laser | 9.11 | 76 | 8 | 9 |
| 80x80x5 | Laser | 6.17 | 80 | 5 | 10 |
| 80x80x6 | Laser | 7.34 | 80 | 6 | 10 |
| 80x80x7 | Laser | 8.49 | 80 | 7 | 10 |
| 80x80x8 | Laser | 9.63 | 80 | 8 | 10 |
| 80x80x9 | Laser | 10.8 | 80 | 9 | 10 |
| 80x80x10 | Laser | 11.9 | 80 | 10 | 10 |
| 90x90x5 | Laser | 6.97 | 90 | 5 | 11 |
| 90x90x6 | Laser | 8.30 | 90 | 6 | 11 |
| 90x90x7 | Laser | 9.61 | 90 | 7 | 11 |
| 90x90x8 | Laser | 10.9 | 90 | 8 | 11 |
| 90x90x9 | Laser | 12.2 | 90 | 9 | 11 |
| 90x90x10 | Laser | 13.4 | 90 | 10 | 11 |
| 90x90x11 | Laser | 14.7 | 90 | 11 | 11 |
| 90x90x16 | Laser | 20.7 | 90 | 16 | 11 |
| 100x100x6 | Laser | 9.26 | 100 | 6 | 12 |
| 100x100x7 | Laser | 10.7 | 100 | 7 | 12 |
| 100x100x8 | Laser | 12.2 | 100 | 8 | 12 |
| 100x100x9 | Laser | 13.6 | 100 | 9 | 12 |
| 100x100x10 | Laser | 15.0 | 100 | 10 | 12 |
| 100x100x11 | Laser | 16.4 | 100 | 11 | 12 |
| 100x100x12 | Laser | 17.8 | 100 | 12 | 12 |
| 100x100x13 | Laser | 19.2 | 100 | 13 | 12 |
| 100x100x14 | Laser | 20.6 | 100 | 14 | 12 |
| 100x100x15 | Laser | 21.9 | 100 | 15 | 12 |
| 100x100x16 | Laser | 23.2 | 100 | 16 | 12 |
| 110x110x6 | Laser | 10.2 | 110 | 6 | 12 |
| 110x110x7 | Laser | 11.8 | 110 | 7 | 12 |
| 110x110x8 | Laser | 13.4 | 110 | 8 | 12 |
| 110x110x9 | Laser | 15.0 | 110 | 9 | 12 |
| 110x110x10 | Laser | 16.6 | 110 | 10 | 13 |
| 110x110x11 | Laser | 18.2 | 110 | 11 | 13 |
| 110x110x12 | Laser | 19.7 | 110 | 12 | 13 |
| 120x120x7 | Laser | 12.9 | 120 | 7 | 13 |
| 120x120x8 | Laser | 14.7 | 120 | 8 | 13 |
| 120x120x9 | Laser | 16.5 | 120 | 9 | 13 |
| 120x120x10 | Laser | 18.2 | 120 | 10 | 13 |
| 120x120x11 | Laser | 19.9 | 120 | 11 | 13 |
| 120x120x12 | Laser | 21.6 | 120 | 12 | 13 |
| 120x120x13 | Laser | 23.3 | 120 | 13 | 13 |
| 120x120x14 | Laser | 25.0 | 120 | 14 | 13 |
| 120x120x15 | Laser | 26.6 | 120 | 15 | 13 |
| 120x120x16 | Laser | 28.3 | 120 | 16 | 13 |
| 130x130x8 | Laser | 16.0 | 130 | 8 | 14 |
| 130x130x9 | Laser | 17.9 | 130 | 9 | 14 |
| 130x130x10 | Laser | 19.8 | 130 | 10 | 14 |
| 130x130x11 | Laser | 21.7 | 130 | 11 | 14 |
| 130x130x12 | Laser | 23.6 | 130 | 12 | 14 |
| 130x130x13 | Laser | 25.4 | 130 | 13 | 14 |
| 130x130x14 | Laser | 27.2 | 130 | 14 | 14 |
| 130x130x15 | Laser | 29.0 | 130 | 15 | 14 |
| 130x130x16 | Laser | 30.8 | 130 | 16 | 14 |
| 140x140x9 | Laser | 19.3 | 140 | 9 | 15 |
| 140x140x10 | Laser | 21.4 | 140 | 10 | 15 |
| 140x140x11 | Laser | 23.4 | 140 | 11 | 15 |
| 140x140x12 | Laser | 25.4 | 140 | 12 | 15 |
| 140x140x13 | Laser | 27.5 | 140 | 13 | 15 |
| 140x140x14 | Laser | 29.4 | 140 | 14 | 15 |
| 140x140x15 | Laser | 31.4 | 140 | 15 | 15 |
| 140x140x16 | Laser | 33.3 | 140 | 16 | 15 |
| 140x140x18 | Laser | 37.2 | 140 | 18 | 15 |
| 150x150x10 | Laser | 23.0 | 150 | 10 | 16 |
| 150x150x11 | Laser | 25.2 | 150 | 11 | 16 |
| 150x150x12 | Laser | 27.3 | 150 | 12 | 16 |
| 150x150x13 | Laser | 29.5 | 150 | 13 | 16 |
| 150x150x14 | Laser | 31.6 | 150 | 14 | 16 |
| 150x150x15 | Laser | 33.8 | 150 | 15 | 16 |
| 150x150x16 | Laser | 35.9 | 150 | 16 | 16 |
| 150x150x17 | Laser | 38.0 | 150 | 17 | 16 |
| 150x150x18 | Laser | 40.1 | 150 | 18 | 16 |
| 150x150x19 | Laser | 42.1 | 150 | 19 | 16 |
| 150x150x20 | Laser | 44.2 | 150 | 20 | 16 |
| 160x160x12 | Laser | 29.3 | 160 | 12 | 17 |
| 160x160x13 | Laser | 31.6 | 160 | 13 | 17 |
| 160x160x14 | Laser | 33.9 | 160 | 14 | 17 |
| 160x160x15 | Laser | 36.2 | 160 | 15 | 17 |
| 160x160x16 | Laser | 38.4 | 160 | 16 | 17 |
| 160x160x17 | Laser | 40.7 | 160 | 17 | 17 |
| 160x160x18 | Laser | 42.9 | 160 | 18 | 17 |
| 160x160x19 | Laser | 45.1 | 160 | 19 | 17 |
| 160x160x20 | Laser | 47.3 | 160 | 20 | 17 |
| 180x180x13 | Laser | 35.7 | 180 | 13 | 18 |
| 180x180x14 | Laser | 38.3 | 180 | 14 | 18 |
| 180x180x15 | Laser | 40.9 | 180 | 15 | 18 |
| 180x180x16 | Laser | 43.5 | 180 | 16 | 18 |
| 180x180x17 | Laser | 46.0 | 180 | 17 | 18 |
| 180x180x18 | Laser | 48.6 | 180 | 18 | 18 |
| 180x180x19 | Laser | 51.1 | 180 | 19 | 18 |
| 180x180x20 | Laser | 53.7 | 180 | 20 | 18 |
| 200x200x13 | Laser | 39.8 | 200 | 13 | 18 |
| 200x200x14 | Laser | 42.7 | 200 | 14 | 18 |
| 200x200x15 | Laser | 45.6 | 200 | 15 | 18 |
| 200x200x16 | Laser | 48.5 | 200 | 16 | 18 |
| 200x200x17 | Laser | 51.4 | 200 | 17 | 18 |
| 200x200x18 | Laser | 54.3 | 200 | 18 | 18 |
| 200x200x19 | Laser | 57.1 | 200 | 19 | 18 |
| 200x200x20 | Laser | 59.9 | 200 | 20 | 18 |
| 200x200x21 | Laser | 62.8 | 200 | 21 | 18 |
| 200x200x22 | Laser | 65.6 | 200 | 22 | 18 |
| 200x200x23 | Laser | 68.3 | 200 | 23 | 18 |
| 200x200x24 | Laser | 71.1 | 200 | 24 | 18 |
| 200x200x25 | Laser | 73.9 | 200 | 25 | 18 |
| 200x200x26 | Laser | 76.6 | 200 | 26 | 18 |
| 200x200x27 | Laser | 79.3 | 200 | 27 | 18 |
| 200x200x28 | Laser | 82.0 | 200 | 28 | 18 |
| 250x250x17 | Laser | 64.4 | 250 | 17 | 18 |
| 250x250x18 | Laser | 68.1 | 250 | 18 | 18 |
| 250x250x19 | Laser | 71.7 | 250 | 19 | 18 |
| 250x250x20 | Laser | 75.3 | 250 | 20 | 18 |
| 250x250x21 | Laser | 78.9 | 250 | 21 | 18 |
| 250x250x22 | Laser | 82.5 | 250 | 22 | 18 |
| 250x250x23 | Laser | 86.1 | 250 | 23 | 18 |
| 250x250x24 | Laser | 89.7 | 250 | 24 | 18 |
| 250x250x25 | Laser | 93.2 | 250 | 25 | 18 |
| 250x250x26 | Laser | 96.7 | 250 | 26 | 18 |
| 250x250x27 | Laser | 101 | 250 | 27 | 18 |
| 250x250x28 | Laser | 104 | 250 | 28 | 18 |
| 250x250x29 | Laser | 107 | 250 | 29 | 18 |
| 250x250x30 | Laser | 111 | 250 | 30 | 18 |
| 250x250x31 | Laser | 114 | 250 | 31 | 18 |
| 250x250x32 | Laser | 118 | 250 | 32 | 18 |
| 250x250x33 | Laser | 121 | 250 | 33 | 18 |
| 250x250x34 | Laser | 124 | 250 | 34 | 18 |
| 250x250x35 | Laser | 128 | 250 | 35 | 18 |
| 300x300x25 | Laser | 112 | 300 | 25 | 18 |
| 300x300x26 | Laser | 116 | 300 | 26 | 18 |
| 300x300x27 | Laser | 121 | 300 | 27 | 18 |
| 300x300x28 | Laser | 125 | 300 | 28 | 18 |
| 300x300x29 | Laser | 129 | 300 | 29 | 18 |
| 300x300x30 | Laser | 133 | 300 | 30 | 18 |
| 300x300x31 | Laser | 138 | 300 | 31 | 18 |
| 300x300x32 | Laser | 142 | 300 | 32 | 18 |
| 300x300x33 | Laser | 146 | 300 | 33 | 18 |
| 300x300x34 | Laser | 150 | 300 | 34 | 18 |
| 300x300x35 | Laser | 154 | 300 | 35 | 18 |
Ordering and delivery
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.British Equal Angles steel sections The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
British Equal Angles steel sections Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
