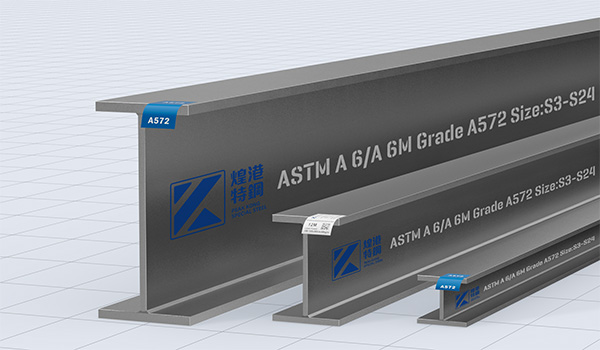

American Wide Flange Beams

Standard: ASTM A 6/A 6M
Technology: ISO 15614-11 or ISO 15614-14
Fabrication Craftsmanship: ASTM A36
Steel grade: According to ASTM A572
Tolerance: Complies with ASTM A635 and A568
Certificate: According to EN10204-2.2 or 3.1B

American Wide Flange BeamsPDF

Search:

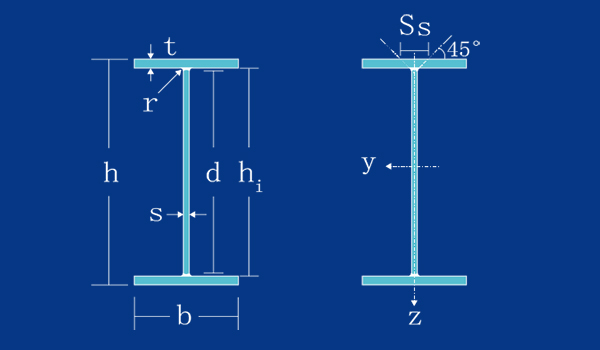

Description	Execution	kg/m	h /mm	b /mm	s /mm	t /mm	r /mm
W 100 x 100 x 19.3	Laser	19.3	106	103	7.1	8.8	6
W 130 x 130 x 23.8	Laser	23.8	127	127	6.1	9.1	8
W 130 x 130 x 28.1	Laser	28.1	131	128	6.9	10.9	8
W 150 x 100 x 13.5	Laser	13.5	150	100	4.3	5.5	6
W 150 x 100 x 18.0	Laser	18.0	153	102	5.8	7.1	6
W 150 x 100 x 24.0	Laser	24.0	160	102	6.6	10.3	6
W 150 x 150 x 22.5	Laser	22.5	152	152	5.8	6.6	6
W 150 x 150 x 29.8	Laser	29.8	157	153	6.6	9.3	6
W 150 x 150 x 37.1	Laser	37.1	162	154	8.1	11.6	6
W 200 x 100 x 15.0	Laser	15.0	200	100	4.3	5.2	8
W 200 x 100 x 19.3	Laser	19.3	203	102	5.8	6.5	8
W 200 x 100 x 22.5	Laser	22.5	206	102	6.2	8	8
W 200 x 135 x 26.6	Laser	26.6	207	133	5.8	8.4	8
W 200 x 135 x 31.3	Laser	31.3	210	134	6.4	10.2	8
W 200 x 165 x 35.9	Laser	35.9	201	165	6.2	10.2	10
W 200 x 165 x 41.7	Laser	41.7	205	166	7.2	11.8	10
W 200 x 200 x 46.1	Laser	46.1	203	203	7.2	11	10
W 200 x 200 x 52	Laser	52	206	204	7.9	12.6	10
W 200 x 200 x 59	Laser	59.0	210	205	9.1	14.2	10
W 200 x 200 x 71	Laser	71.0	216	206	10.2	17.4	10
W 200 x 200 x 86	Laser	86.0	222	209	13	20.6	10
W 200 x 200 x 100	Laser	100.0	229	210	14.5	23.7	10
W 250 x 100 x 17.9	Laser	17.9	251	101	4.8	5.3	8
W 250 x 100 x 22.3	Laser	22.3	254	102	5.8	6.9	8
W 250 x 100 x 25.3	Laser	25.3	257	102	6.1	8.4	8
W 250 x 100 x 28.4	Laser	28.4	260	102	6.4	10	8
W 250 x 145 x 32.7	Laser	32.7	258	146	6.1	9.1	8
W 250 x 145 x 38.5	Laser	38.5	262	147	6.6	11.2	8
W 250 x 145 x 44.8	Laser	44.8	266	148	7.6	13	8
W 250 x 200 x 49.1	Laser	49.1	247	202	7.4	11	13
W 250 x 200 x 58	Laser	58	252	203	8	13.5	13
W 250 x 200 x 67	Laser	67	257	204	8.9	15.7	13
W 250 x 250 x 73	Laser	73.0	253	254	8.6	14.2	13
W 250 x 250 x 80	Laser	80.0	256	255	9.4	15.6	13
W 250 x 250 x 89	Laser	89.0	260	256	10.7	17.3	13
W 250 x 250 x 101	Laser	101.0	264	257	11.9	19.6	13
W 250 x 250 x 115	Laser	115.0	269	259	13.5	22.1	13
W 250 x 250 x 131	Laser	131	275	261	15.4	25.1	13
W 250 x 250 x 149	Laser	149	282	263	17.3	28.4	13
W 250 x 250 x 167	Laser	167	289	265	19.2	31.8	13
W 310 x 100 x 21.0	Laser	21	303	101	5.1	5.7	8
W 310 x 100 x 23.8	Laser	23.8	305	101	5.6	6.7	8
W 310 x 100 x 28.3	Laser	28.3	309	102	6	8.9	8
W 310 x 100 x 32.7	Laser	32.7	313	102	6.6	10.8	8
W 310 x 165 x 38.7	Laser	38.7	310	165	5.8	9.7	8
W 310 x 165 x 44.5	Laser	44.5	313	166	6.6	11.2	8
W 310 x 165 x 52	Laser	52.0	317	167	7.6	13.2	8
W 310 x 200 x 60	Laser	60	303	203	7.5	13.1	15
W 310 x 200 x 67	Laser	67	306	204	8.5	14.6	15
W 310 x 200 x 74	Laser	74.0	310	205	9.4	16.3	15
W 310 x 250 x 79	Laser	79.0	306	254	8.8	14.6	15
W 310 x 250 x 86	Laser	86.0	310	254	9.1	16.3	15
W 310 x 310 x 97	Laser	97.0	308	305	9.9	15.4	15
W 310 x 310 x 107	Laser	107.0	311	306	10.9	17	15
W 310 x 310 x 117	Laser	117.0	314	307	11.9	18.7	15
W 310 x 310 x 129	Laser	129.0	318	308	13.1	20.6	15
W 310 x 310 x 143	Laser	143	323	309	14	22.9	15
W 310 x 310 x 158	Laser	158	327	310	15.5	25.1	15
W 310 x 310 x 179	Laser	179	333	313	18	28.1	15
W 310 x 310 x 202	Laser	202	341	315	20.1	31.8	15
W 310 x 310 x 226	Laser	226	348	317	22.1	35.6	15
W 310 x 310 x 253	Laser	253	356	319	24.4	39.6	15
W 310 x 310 x 283	Laser	283	365	322	26.9	44.1	15
W 310 x 310 x 313	Laser	313	374	325	30	48.3	15
W 310 x 310 x 342	Laser	342	382	328	32.6	52.6	15
W 360 x 130 x 32.9	Laser	32.9	349	127	5.8	8.5	10
W 360 x 130 x 39.0	Laser	39	353	128	6.5	10.7	10
W 360 x 170 x 44	Laser	44.6	352	171	6.9	9.8	10
W 360 x 170 x 51	Laser	51	355	171	7.2	11.6	10
W 360 x 170 x 57.8	Laser	58.0	358	172	7.9	13.1	10
W 360 x 200 x 64	Laser	64.0	347	203	7.7	13.5	15
W 360 x 200 x 72	Laser	72.0	350	204	8.6	15.1	15
W 360 x 200 x 79	Laser	79.0	354	205	9.4	16.8	15
W 360 x 250 x 91	Laser	91.0	353	254	9.5	16.4	15
W 360 x 250 x 101	Laser	101.0	357	255	10.5	18.3	15
W 360 x 250 x 110	Laser	110.0	360	256	11.4	19.9	15
W 360 x 250 x 122	Laser	122.0	363	257	13	21.7	15
W 360 x 370 x 134	Laser	134	356	369	11.2	18	15
W 360 x 370 x 147	Laser	147	360	370	12.3	19.8	15
W 360 x 370 x 162	Laser	162	364	371	13.3	21.8	15
W 360 x 370 x 179	Laser	179	368	373	15	23.9	15
W 360 x 370 x 196	Laser	196	372	374	16.4	26.2	15
W 360 x 410 x 216	Laser	216	375	394	17.3	27.7	15
W 360 x 410 x 237	Laser	237	380	395	18.9	30.2	15
W 360 x 410 x 262	Laser	262	387	398	21.1	33.3	15
W 360 x 410 x 287	Laser	287	393	399	22.6	36.6	15
W 360 x 410 x 314	Laser	314	399	401	24.9	39.6	15
W 360 x 410 x 347	Laser	347	407	404	27.2	43.7	15
W 360 x 410 x 382	Laser	382	416	406	29.8	48	15
W 360 x 410 x 421	Laser	421	425	409	32.8	52.6	15
W 360 x 410 x 463	Laser	463	435	412	35.8	57.4	15
W 360 x 410 x 509	Laser	509	446	416	39.1	62.7	15
W 360 x 410 x 551	Laser	551	455	418	42	67.6	15
W 360 x 410 x 592	Laser	592	465	421	45	72.3	15
W 360 x 410 x 634	Laser	634	474	424	47.6	77.1	15
W 360 x 410 x 677	Laser	677	483	428	51.2	81.5	15
W 360 x 410 x 744	Laser	744	498	432	55.6	88.9	15
W 360 x 410 x 818	Laser	818	514	437	60.5	97	15
W 360 x 410 x 900	Laser	900	531	442	65.9	106	15
W 360 x 410 x 990	Laser	990	550	448	71.9	115	15
W 360 x 410 x 1086	Laser	1086	569	454	78	125	15
W 410 x 140 x 38.8	Laser	38.8	399	140	6.4	8.8	10
W 410 x 140 x 46.1	Laser	46.1	403	140	7	11.2	10
W 410 x 180 x 53	Laser	53	403	177	7.5	10.9	10
W 410 x 180 x 60	Laser	60.0	407	178	7.7	12.8	10
W 410 x 180 x 67	Laser	67.0	410	179	8.8	14.4	10
W 410 x 180 x 75	Laser	75.0	413	180	9.7	16	10
W 410 x 180 x 85	Laser	85.0	417	181	10.9	18.2	10
W 410 x 260 x 100	Laser	100.0	415	260	10	16.9	10
W 410 x 260 x 114	Laser	114.0	420	261	11.6	19.3	10
W 410 x 260 x 132	Laser	132.0	425	263	13.3	22.2	10
W 410 x 260 x 149	Laser	149	431	265	14.9	25	10
W 460 x 150 x 52	Laser	52	450	152	7.6	10.8	10
W 460 x 150 x 60	Laser	60	455	153	8	13.3	10
W 460 x 150 x 68	Laser	68	459	154	9.1	15.4	10
W 460 x 190 x 74	Laser	74.0	457	190	9	14.5	10
W 460 x 190 x 82	Laser	82.0	460	191	9.9	16	10
W 460 x 190 x 89	Laser	89.0	463	192	10.5	17.7	10
W 460 x 190 x 97	Laser	97.0	466	193	11.4	19	10
W 460 x 190 x 106	Laser	106.0	469	194	12.6	20.6	10
W 460 x 280 x 113	Laser	113.0	463	280	10.8	17.3	10
W 460 x 280 x 128	Laser	128.0	467	282	12.2	19.6	10
W 460 x 280 x 144	Laser	144.0	472	283	13.6	22.1	10
W 460 x 280 x 158	Laser	158.0	476	284	15	23.9	10
W 460 x 280 x 177	Laser	177	482	286	16.6	26.9	10
W 460 x 280 x 193	Laser	193	489	283	17	30.5	10
W 460 x 280 x 213	Laser	213	495	285	18.5	33.5	10
W 460 x 280 x 235	Laser	235	501	287	20.6	36.6	10
W 460 x 280 x 260	Laser	260	509	289	22.6	40.4	10
W 530 x 165 x 66	Laser	66	525	165	8.9	11.4	13
W 530 x 165 x 74	Laser	74	529	166	9.7	13.6	13
W 530 x 165 x 85	Laser	85	535	166	10.3	16.5	13
W 530 x 210 x 92	Laser	92	533	209	10.2	15.6	13
W 530 x 210 x 101	Laser	101	537	210	10.9	17.4	13
W 530 x 210 x 109	Laser	109.0	539	211	11.6	18.8	13
W 530 x 210 x 123	Laser	123.0	544	212	13.1	21.2	13
W 530 x 210 x 138	Laser	138.0	549	214	14.7	23.6	13
W 530 x 315 x 150	Laser	150.0	543	312	12.7	20.3	13
W 530 x 315 x 165	Laser	165	546	313	14	22.2	13
W 530 x 315 x 182	Laser	182	551	315	15.2	24.4	13
W 530 x 315 x 196	Laser	196	554	316	16.5	26.3	13
W 530 x 315 x 219	Laser	219	560	318	18.3	29.2	13
W 530 x 315 x 248	Laser	248	571	315	19	34.5	13
W 530 x 315 x 272	Laser	272	577	318	21.1	37.6	13
W 530 x 315 x 300	Laser	300	585	319	23.1	41.4	13
W 610 x 180 x 82	Laser	82	599	178	10	12.8	13
W 610 x 180 x 92	Laser	92	603	179	10.9	15	13
W 610 x 230 x 101	Laser	101	603	228	10.5	14.9	13
W 610 x 230 x 113	Laser	113	608	228	11.2	17.3	13
W 610 x 230 x 125	Laser	125	612	229	11.9	19.6	13
W 610 x 230 x 140	Laser	140.0	617	230	13.1	22.2	13
W 610 x 230 x 153	Laser	153.0	623	229	14	24.9	13
W 610 x 325 x 155	Laser	155	611	324	12.7	19	13
W 610 x 325 x 174	Laser	174	616	325	14	21.6	13
W 610 x 325 x 195	Laser	195	622	327	15.4	24.4	13
W 610 x 325 x 217	Laser	217	628	328	16.5	27.7	13
W 610 x 325 x 241	Laser	241	635	329	17.1	31	13
W 610 x 325 x 262	Laser	262	641	327	19	34	13
W 610 x 325 x 285	Laser	285	647	329	20.6	37.1	13
W 610 x 325 x 341	Laser	341	661	333	24.4	43.9	13
W 610 x 325 x 415	Laser	415	679	338	29.5	53.1	13
W 610 x 325 x 455	Laser	455	689	340	32	57.9	13
W 610 x 325 x 498	Laser	498	699	343	35.1	63	13
W 610 x 325 x 551	Laser	551	711	347	38.6	69.1	13
W 690 x 250 x 125	Laser	125	678	253	11.7	16.3	15
W 690 x 250 x 140	Laser	140	684	254	12.4	18.9	15
W 690 x 250 x 152	Laser	152	688	254	13.1	21.1	15
W 690 x 250 x 170	Laser	170	693	256	14.5	23.6	15
W 690 x 250 x 192	Laser	192	702	254	15.5	27.9	15
W 760 x 265 x 147	Laser	147	753	265	13.2	17	17
W 760 x 265 x 161	Laser	161	758	266	13.8	19.3	17
W 760 x 265 x 173	Laser	173	762	267	14.4	21.6	17
W 760 x 265 x 185	Laser	185	766	267	14.9	23.6	17
W 760 x 265 x 196	Laser	196	770	268	15.6	25.4	17
W 760 x 265 x 220	Laser	220	779	266	16.5	30	17
W 840 x 295 x 176	Laser	176	835	292	14	18.8	18
W 840 x 295 x 193	Laser	193	840	292	14.7	21.7	18
W 840 x 295 x 210	Laser	210	846	293	15.4	24.4	18
W 840 x 295 x 226	Laser	226	851	294	16.1	26.8	18
W 840 x 295 x 251	Laser	251	859	292	17	31	18
W 920 x 310 x 201	Laser	201	903	304	15.2	20.1	19
W 920 x 310 x 223	Laser	223	911	304	15.9	23.9	19
W 920 x 310 x 238	Laser	238	915	305	16.5	25.9	19
W 920 x 310 x 253	Laser	253	919	306	17.3	27.9	19
W 920 x 310 x 271	Laser	271	923	307	18.4	30	19
W 920 x 310 x 289	Laser	289	927	308	19.4	32	19
W 920 x 310 x 313	Laser	313	932	309	21.1	34.5	19
W 920 x 420 x 345w	Laser	345	927	418	19.3	32	19
W 920 x 420 x 368w	Laser	368	931	419	20.3	34.3	19
W 920 x 420 x 390w	Laser	390	936	420	21.3	36.6	19
W 920 x 420 x 420w	Laser	420	943	422	22.5	39.9	19
W 920 x 420 x 449w	Laser	449	948	423	24	42.7	19
W 920 x 420 x 491w	Laser	491	957	422	25.9	47	19
W 920 x 420 x 537w	Laser	537	965	425	28.4	51.1	19
W 920 x 420 x 588w	Laser	588	976	427	31	55.9	19
W 920 x 420 x 656w	Laser	656	987	431	34.5	62	19
W 920 x 420 x 725w	Laser	725	999	434	38.1	68.1	19
W 920 x 420 x 787w	Laser	787	1011	437	40.9	73.9	19
W 920 x 420 x 970w	Laser	970	1043	446	50	89.9	19
W 1000 x 300 x 222	Laser	222	970	300	16	21.1	30
W 1000 x 300 x 249	Laser	249	980	300	16.5	26	30
W 1000 x 300 x 272	Laser	272	990	300	16.5	31	30
W 1000 x 300 x 314	Laser	314	1000	300	19.1	35.9	30
W 1000 x 300 x 350	Laser	350	1008	302	21.1	40	30
W 1000 x 300 x 393	Laser	393	1016	303	24.4	43.9	30
W 1000 x 300 x 415	Laser	415	1020	304	26	46	30
W 1000 x 300 x 438	Laser	438	1026	305	27	49	30
W 1000 x 300 x 494	Laser	494	1036	309	31	54	30
W 1000 x 300 x 584	Laser	584	1056	314	36	64	30
W 1000 x 400 x 296	Laser	296	982	400	16.5	27.1	30
W 1000 x 400 x 321	Laser	321	990	400	16.5	31	30
W 1000 x 400 x 371	Laser	371	1000	400	19	36.1	30
W 1000 x 400 x 412	Laser	412	1008	402	21.1	40	30
W 1000 x 400 x 443	Laser	443	1012	402	23.6	41.9	30
W 1000 x 400 x 483	Laser	483	1020	404	25.4	46	30
W 1000 x 400 x 539	Laser	539	1030	407	28.4	51.1	30
W 1000 x 400 x 554	Laser	554	1032	408	29.5	52	30
W 1000 x 400 x 591	Laser	591	1040	409	31	55.9	30
W 1000 x 400 x 642	Laser	642	1048	412	34	60	30
W 1000 x 400 x 748	Laser	748	1068	417	39	70	30
W 1000 x 400 x 883	Laser	883	1092	424	45.5	82	30
W 1100 x 400 x 343	Laser	343	1090	400	18	31	20
W 1100 x 400 x 390	Laser	390	1100	400	20	36	20
W 1100 x 400 x 433	Laser	433	1108	402	22	40	20
W 1100 x 400 x 499	Laser	499	1118	405	26	45	20

Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.American Wide Flange Beams The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
American Wide Flange Beams Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.

You did not find the product you were looking for? Let’s tailor it for you.

Get the plan!

Peak Kong Special Steel Co., Limited

Unit B, 9/F, Worldwide Centre, 123 Tung Chau Street, Tai Kok Tsui Kowloon.HongKong.
T: +852-29811161
E: sales@peakkong.com

Peak Kong Special Steel Technology (Guangdong) Co., Ltd.

No. 1 Building 1, No. 6 Xiegang Jinhai Road, Xiegang Town, Dongguan City, Guangdong Province.
T: 0769-82869307
E: admin@peakkong.com

Previous：American standard beams
Next：American Unequal Angles steel sections
