To start this process smoothly:
- Send us a drawing: It can be hand-drawn or in CAD format, whichever you prefer.
- Provide us with information about your project: material grade, quantity, length, surface finish, specific testing requirements, required dimensional tolerances, and any other relevant details.
- Unit B, 9/F, Worldwide Centre, 123 Tung Chau Street, Tai Kok Tsui Kowloon.HongKong
- T: +852-92992995
- E: sales@peakkong.com
+
- Standard: ASTM A276/A276M, ASTM A484
- Technology: ISO 15614-11 or ISO 15614-14
- Fabrication Craftsmanship: ASTM A1069, EN 13919
- Steel grade: 304, 304L, 316, 316L, S317L, 410L, 310S, 904L
- Tolerance: ASTM A484, ASTM A479
- Certificate: ASTM A484/A484M

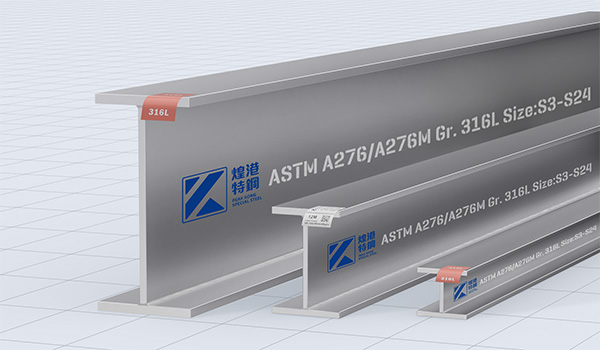

Peakkong Special Steel can produce various sizes of American standard Stainless Steel W Beam in the production size range. Laser-fused Stainless Steel W Beam is produced in accordance with ASTM A1069/A1069M/11, and the dimensional tolerance and grade comply with ASTM A276 ASTM A484 ASTMA479/A479M. 304, 304L, 304H, 304LN, 309S, 309H, 310S, 310H 316, 316L, 316H, 316TI, 317, 321, 347H, 904L, 2205, 2507 stainless steel grades.
We use automated laser welding technology to manufacture these Stainless Steel W Beam through precision laser welding lines located in China, ensuring fast delivery worldwide.
Stainless steel wide flange beams sections，Stainless Steel W Beam is used in petrochemical and marine industries, water treatment, building and construction, industry. We also offer a variety of specialty stainless steel sections, including duplex/superduplex stainless steel sections, with Stainless Steel W Beam sections increasingly being chosen for nuclear energy applications.
If your project requires something non-standard and your ideal size is not in the list of ‘standard’ sizes readily available then please ask our experienced sales team who can offer the right solution to help satisfy you exact requirement. For more information, please contact our sales team.
| Description | Execution | lbs/ft | h /in | b /in | s /in | t /in |
|---|---|---|---|---|---|---|
| S 3x5.70 | Laser | 5.7 | 3 | 2.33 | 0.17 | 0.26 |
| S 3x7.50 | Laser | 7.5 | 3 | 2.509 | 0.349 | 0.26 |
| S 4x7.70 | Laser | 7.7 | 4 | 2.663 | 0.193 | 0.293 |
| S 4x9.50 | Laser | 9.5 | 4 | 2.796 | 0.326 | 0.293 |
| S 5x10.0 | Laser | 10 | 5 | 3.004 | 0.214 | 0.326 |
| S 5x14.75 | Laser | 14.75 | 5 | 3.284 | 0.494 | 0.326 |
| S 6x12.5 | Laser | 12.5 | 6 | 3.332 | 0.232 | 0.359 |
| S 6x17.25 | Laser | 17.25 | 6 | 3.565 | 0.465 | 0.359 |
| S 7x15.3 | Laser | 15.3 | 7 | 3.662 | 0.252 | 0.392 |
| S 7x20.0 | Laser | 20 | 7 | 3.86 | 0.45 | 0.392 |
| S 8x18.4 | Laser | 18.4 | 8 | 4.001 | 0.271 | 0.425 |
| S 8x23.0 | Laser | 23 | 8 | 4.171 | 0.441 | 0.425 |
| S 10x25.4 | Laser | 25.4 | 10 | 4.661 | 0.311 | 0.491 |
| S 10x35.0 | Laser | 35 | 10 | 4.944 | 0.594 | 0.491 |
| S 12x31.8 | Laser | 31.8 | 12 | 5 | 0.35 | 0.544 |
| S 12x35.0 | Laser | 35 | 12 | 5.078 | 0.428 | 0.544 |
| S 12x40.8 | Laser | 40.8 | 12 | 5.252 | 0.472 | 0.659 |
| S 12x50.0 | Laser | 50 | 12 | 5.477 | 0.687 | 0.659 |
| S 15x42.9 | Laser | 42.9 | 15 | 5.501 | 0.411 | 0.622 |
| S 15x50.0 | Laser | 50 | 15 | 5.64 | 0.55 | 0.622 |
PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.American standard Stainless Stee beams The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
American standard Stainless Stee beams Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
