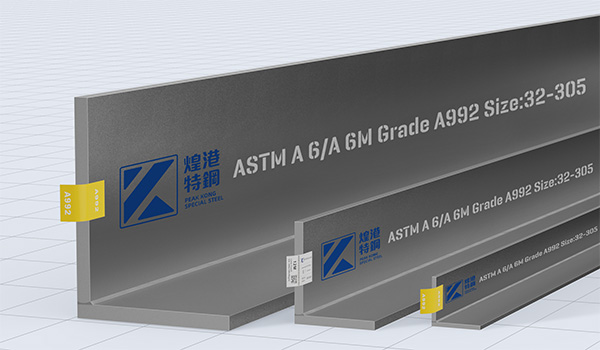

American Equal Angles steel sections

Standard: ASTM A 6/A 6M
Technology: ISO 15614-11 or ISO 15614-14
Fabrication Craftsmanship: ASTM 1069、EN13919
Steel grade: A36, A709/A709M, A572, Gr50, Gr65, Gr80, A992, Gr50, Gr65, Gr80
Tolerance: ASTM A635 or A568
Certificate: According to ASTM A36/A105

In accordance with ASTM A 6/A 6M, other material grades are available on request, please see the full steel grade list.

American Equal Angles steel sectionsPDF

Search:

Description	Execution	kg/m	d = b /mm	t /mm	r /mm
L 32 x 32 x 3.2t	Laser	1.5	31.75	3.18	5.0
L 32 x 32 x 4.8t	Laser	2.2	31.75	4.76	5.0
L 32 x 32 x 6.4t	Laser	2.8	31.75	6.35	5.0
L 38 x 38 x 3.2t	Laser	1.8	38.1	3.18	6.0
L 38 x 38 x 4.0t	Laser	2.2	38.1	3.97	6.0
L 38 x 38 x 4.8t	Laser	2.7	38.1	4.76	6.0
L 38 x 38 x 6.4t	Laser	3.4	38.1	6.35	6.0
L 44 x 44 x 3.2t	Laser	2.1	44.45	3.18	7.0
L 44 x 44 x 4.8t	Laser	3.1	44.45	4.76	7.0
L 44 x 44 x 6.4t	Laser	4.1	44.45	6.35	7.0
L 51 x 51 x 3.2t	Laser	2.4	50.8	3.18	7.0
L 51 x 51 x 4.8t	Laser	3.6	50.8	4.76	7.0
L 51 x 51 x 6.4t	Laser	4.7	50.8	6.35	7.0
L 51 x 51 x 7.9t	Laser	5.8	50.8	7.94	7.0
L 51 x 51 x 9.5t	Laser	7.0	50.8	9.53	7.0
L 64 x 64 x 4.8t	Laser	4.6	63.5	4.76	9.0
L 64 x 64 x 6.4t	Laser	6.1	63.5	6.35	9.0
L 64 x 64 x 7.9t	Laser	7.4	63.5	7.94	9.0
L 64 x 64 x 9.5t	Laser	8.7	63.5	9.53	9.0
L 64 x 64 x 12.7t	Laser	11.4	63.5	12.7	9.0
L 76 x 76 x 4.8t	Laser	5.5	76.2	4.76	9.0
L 76 x 76 x 6.4t	Laser	7.3	76.2	6.35	9.0
L 76 x 76 x 7.9t	Laser	9.1	76.2	7.94	9.0
L 76 x 76 x 9.5t	Laser	10.7	76.2	9.53	9.0
L 76 x 76 x 11.1t	Laser	12.4	76.2	11.1	9.0
L 76 x 76 x 12.7t	Laser	14.0	76.2	12.7	9.0
L 89 x 89 x 6.4t	Laser	8.6	88.9	6.35	11.0
L 89 x 89 x 7.9t	Laser	10.7	88.9	7.94	11.0
L 89 x 89 x 9.5t	Laser	12.6	88.9	9.53	11.0
L 89 x 89 x 11.1t	Laser	14.6	88.9	11.1	11.0
L 89 x 89 x 12.7t	Laser	16.5	88.9	12.7	11.0
L 102 x 102 x 6.4t	Laser	9.8	101.6	6.35	12.0
L 102 x 102 x 7.9t	Laser	12.2	101.6	7.94	12.0
L 102 x 102 x 9.5t	Laser	14.6	101.6	9.53	12.0
L 102 x 102 x 11.1t	Laser	16.8	101.6	11.1	12.0
L 102 x 102 x 12.7t	Laser	19.0	101.6	12.7	12.0
L 102 x 102 x 15.9t	Laser	23.4	101.6	15.9	12.0
L 102 x 102 x 19.0t	Laser	27.5	101.6	19.1	12.0
L 127 x 127 x 7.9t	Laser	15.3	127	7.94	14.0
L 127 x 127 x 9.5t	Laser	18.3	127	9.53	14.0
L 127 x 127 x 11.1t	Laser	21.3	127	11.1	14.0
L 127 x 127 x 12.7t	Laser	24.1	127	12.7	14.0
L 127 x 127 x 15.9t	Laser	29.8	127	15.9	14.0
L 127 x 127 x 19.0t	Laser	35.1	127	19.1	14.0
L 127 x 127 x 22.2t	Laser	40.5	127	22.2	14.0
L 152 x 152 x 7.9t	Laser	18.5	152.4	7.94	16.0
L 152 x 152 x 9.5t	Laser	22.2	152.4	9.53	16.0
L 152 x 152 x 11.1t	Laser	25.6	152.4	11.1	16.0
L 152 x 152 x 12.7t	Laser	29.2	152.4	12.7	16.0
L 152 x 152 x 14.3t	Laser	32.6	152.4	14.3	16.0
L 152 x 152 x 15.9t	Laser	36.0	152.4	15.9	16.0
L 152 x 152 x 19.0t	Laser	42.7	152.4	19.1	16.0
L 152 x 152 x 22.2t	Laser	49.3	152.4	22.2	16.0
L 152 x 152 x 25.4t	Laser	55.7	152.4	25.4	16.0
L 203 x 203 x 12.7t	Laser	39.3	203.2	12.7	18.0
L 203 x 203 x 14.3t	Laser	44.0	203.2	14.3	18.0
L 203 x 203 x 15.9t	Laser	48.7	203.2	15.9	18.0
L 203 x 203 x 19.0t	Laser	57.9	203.2	19.1	18.0
L 203 x 203 x 22.2t	Laser	67.0	203.2	22.2	18.0
L 203 x 203 x 25.4t	Laser	75.9	203.2	25.4	18.0
L 203 x 203 x 28.6t	Laser	84.7	203.2	28.6	18.0
L 254 x 254 x19.1t	Laser	73.1	254.0	19.1	18.0
L 254 x 254 x22.2t	Laser	84.8	254.0	22.2	18.0
L 254 x 254 x25.4t	Laser	96.6	254.0	25.4	18.0
L 254 x 254 x28.6t	Laser	107.5	254.0	28.6	18.0
L 254 x 254 x31.8t	Laser	118.5	254.0	31.8	18.0
L 254 x 254 x34.9t	Laser	129.5	254.0	34.9	18.0
L 305 x305 x25.4t	Laser	115.4	305.0	25.4	18.0
L 305 x305 x28.6t	Laser	129.5	305.0	28.6	18.0
L 305 x305 x31.8t	Laser	143.7	305.0	31.8	18.0
L 305 x305 x34.9t	Laser	156.2	305.0	34.9	18.0

Ordering and delivery

PeakKong Special Steel applies Peakkong delivery conditions during the delivery process, and adds that both parties will comply with applicable legal and regulatory requirements and will not engage in any unethical business practices.
The products produced by PeakKong Special Steel.American Equal Angles steel sections The technical delivery conditions of our products meet the respective requirements. Dimensions and tolerances are defined according to the relevant steel material standards. Engineering work complies with the respective standards.
American Equal Angles steel sections Equipped with strapping tags and Peakkong Special Steel product tags to achieve comprehensive traceability and identification. According to the corresponding steel standards, corresponding material certificates will be provided.
